BTS308 Series
Manufacturer: INFINEON
Beta
⌘K

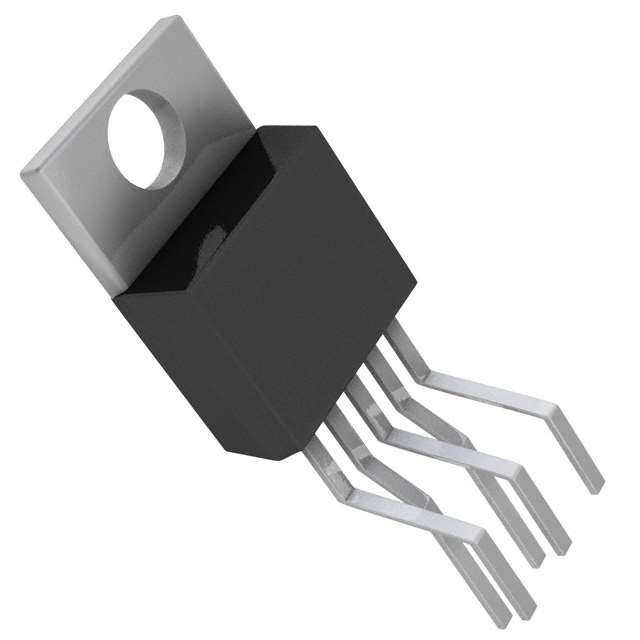

IC PWR SWITCH N-CHAN 1:1 TO220-5
| Part | Ratio - Input:Output | Voltage - Supply (Vcc/Vdd) | Rds On (Typ) | Switch Type | Package / Case | Number of Outputs | Supplier Device Package | Features | Current - Output (Max) [Max] | Interface | Fault Protection | Output Configuration | Voltage - Load [Min] | Voltage - Load [Max] | Input Type | Output Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 1:1 | Not Required | 270 mOhm | General Purpose | TO-220-5 Formed Leads | 1 | P-TO220-5-3 | Auto Restart | 1.18 A | On/Off | Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage | High Side | 4.7 V | 34 V | Non-Inverting | N-Channel | Through Hole | -40 °C | 150 °C |
 INFINEON | 1:1 | Not Required | 270 mOhm | General Purpose | D2PAK (4 Leads + Tab) TO-263-5 TO-263BB | 1 | SMD TO-220AB/5 | Auto Restart | 1.18 A | On/Off | Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage | High Side | 4.7 V | 34 V | Non-Inverting | N-Channel | Surface Mount | -40 °C | 150 °C |
