BG302 Series
Manufacturer: GCT
Beta
⌘K

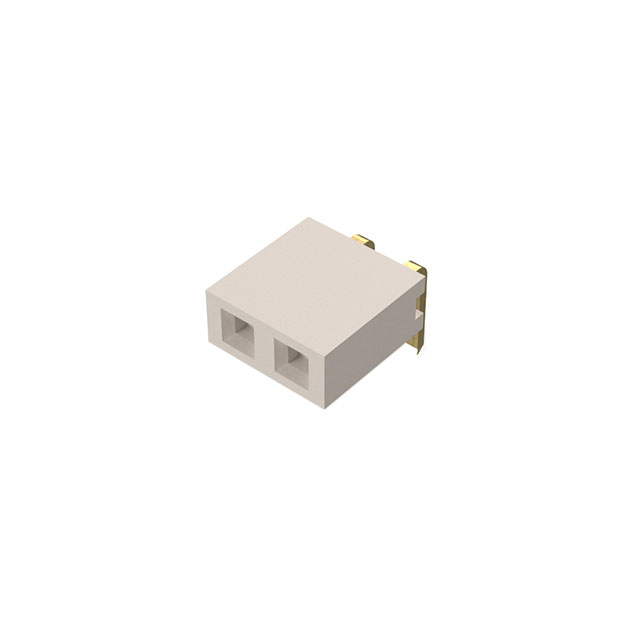

BOARD TO BOARD & MEZZANINE CONNECTORS 2W, 2.54MM PTH SOCKET, SIL, TH, HORIZ, GF, LCP NATURAL, BOX
| Part | Insulation Material | Contact Shape | Contact Material | Applications | Contact Finish Thickness - Post | Contact Length - Post [x] | Contact Length - Post [x] | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Termination | Contact Type | Contact Finish Thickness - Mating | Contact Finish - Mating | Current Rating (Amps) | Connector Type | Material Flammability Rating | Insulation Height | Insulation Height | Number of Rows | Mounting Type | Fastening Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Liquid Crystal Polymer (LCP) | Square | Copper Alloy | General Purpose | Flash | 0.126 " | 3.2 mm | 0.1 " | 2.54 mm | Gold | Natural | -40 C | 105 ░C | All | Solder | Forked | Flash | Gold | 3 A | Receptacle | UL94 V-0 | 0.098 " | 2.5 mm | 1 | Right Angle Through Hole | Push-Pull | 2 |
