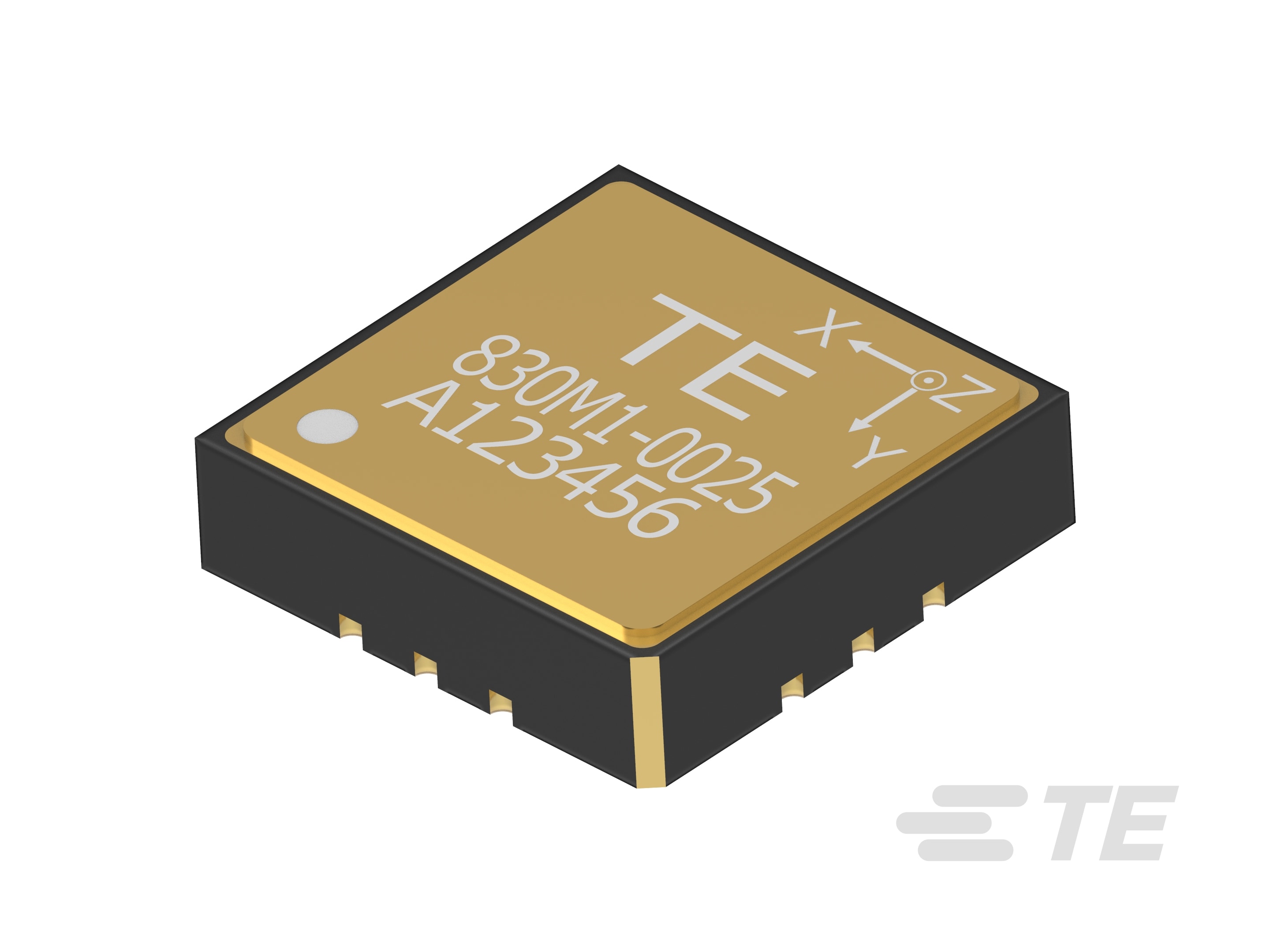

MEAS 830 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
ACCELEROMETER, 25G, PIEZO/TRIAXIAL, 5.5V ROHS COMPLIANT: YES
| Part | Supplier Device Package | Acceleration Range [Max] | Acceleration Range [Min] | Package / Case | Sensitivity (mV/g) | Mounting Type | Type | Bandwidth [Max] | Bandwidth [Min] | Axis [z] | Axis [y] | Axis [x] | Features | Output Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Max] | Voltage - Supply [Min] | Acceleration Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 12-LCC | 25 g | -25 g | 12-LCC | 50 mV/g | Surface Mount | Analog | 15 kHz | 2 Hz | Z | Y | X | Temperature Sensor | Analog Voltage | 125 °C | -40 C | 5.5 V | 3.3 V | |
 TE Connectivity AMP Connectors | 12-LCC | 200 g | -200 g | 12-LCC | 6.3 mV/g | Surface Mount | Analog | 15 kHz | 2 Hz | Z | Y | X | Temperature Sensor | Analog Voltage | 125 °C | -40 C | 5.5 V | 3.3 V | |
TE Connectivity AMP Connectors | 12-LCC | 12-LCC | 25 mV/g | Surface Mount | Analog | 15 kHz | 2 Hz | Z | Y | X | Temperature Sensor | Analog Voltage | 125 °C | -40 C | 5.5 V | 3.3 V | 50 g | ||
TE Connectivity AMP Connectors | 12-LCC | 2000 g | -2000 g | 12-LCC | 0.63 mV/g | Surface Mount | Analog | 15 kHz | 2 Hz | Z | Y | X | Temperature Sensor | Analog Voltage | 125 °C | -40 C | 5.5 V | 3.3 V | |
 TE Connectivity AMP Connectors | 12-LCC | 12-LCC | 1.25 mV/g | Surface Mount | Analog | 15 kHz | 2 Hz | Z | Y | X | Temperature Sensor | Analog Voltage | 125 °C | -40 C | 5.5 V | 3 V | 1000 g | ||
TE Connectivity AMP Connectors | 12-LCC | 12-LCC | 12.5 mV/g | Surface Mount | Analog | 15 kHz | 2 Hz | Z | Y | X | Temperature Sensor | Analog Voltage | 125 °C | -40 C | 5.5 V | 3.3 V | 100 g | ||
TE Connectivity AMP Connectors | 12-LCC | 2000 g | -2000 g | 12-LCC | 0.63 mV/g | Surface Mount | Analog | 15 kHz | 2 Hz | Z | Y | X | Temperature Sensor | Analog Voltage | 125 °C | -40 C | 5.5 V | 3 V | |
TE Connectivity AMP Connectors | 12-LCC | 500 g | -500 g | 12-LCC | 2.5 mV/g | Surface Mount | Analog | 15 kHz | 2 Hz | Z | Y | X | Temperature Sensor | Analog Voltage | 125 °C | -40 C | 5.5 V | 3 V | |
 TE Connectivity AMP Connectors | 12-LCC | 12-LCC | 1.25 mV/g | Surface Mount | Analog | 15 kHz | 2 Hz | Z | Y | X | Temperature Sensor | Analog Voltage | 125 °C | -40 C | 5.5 V | 3.3 V | 1000 g | ||
TE Connectivity AMP Connectors | 12-LCC | 12-LCC | 25 mV/g | Surface Mount | Analog | 15 kHz | 2 Hz | Z | Y | X | Temperature Sensor | Analog Voltage | 125 °C | -40 C | 5.5 V | 3 V | 50 g |
