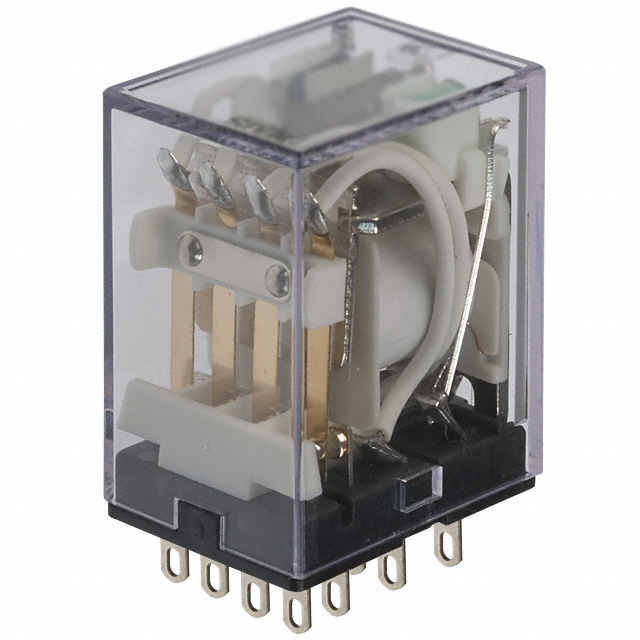

HJ4-L-D Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
RELAY GEN PURPOSE 4PDT 5A 110V
| Part | Coil Resistance | Mounting Type | Contact Material | Contact Form | Operate Time | Coil Voltage | Approval Agency | Contact Rating (Current) | Load - Max Switching | Features | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Relay Type | Termination Style | Release Time | Switching Voltage | Coil Current | Must Release Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 11000 Ohms | Socketable | Gold (Au) Silver (Ag) | 4PDT (4 Form C) | 20 ms | 110 VDC | cURus TUV | 5 A | 625 W 1250 VA | Lighted Indicator | 88 VDC | 70 °C | -40 C | Non Latching | General Purpose | Plug In | 20 ms | 125 VDC 250 VAC | 10 mA | 11 VDC |
Panasonic Electronic Components | 2.6 kOhms | Socketable | Silver (Ag) | 4PDT (4 Form C) | 20 ms | 48 VDC | cURus TUV | 5 A | 625 W 1250 VA | Diode Lighted Indicator | 38.4 VDC | 70 °C | -40 C | Non Latching | General Purpose | Plug In | 20 ms | 125 VDC 250 VAC | 18 mA | 4.8 VDC |
 Panasonic Electronic Components | 160 Ohms | Socketable | Silver (Ag) | 4PDT (4 Form C) | 20 ms | 12 VDC | cURus TUV | 5 A | 625 W 1250 VA | Lighted Indicator | 9.6 VDC | 70 °C | -40 C | Non Latching | General Purpose | Plug In | 20 ms | 125 VDC 250 VAC | 0.075 A | 1.2 VDC |
Panasonic Electronic Components | 160 Ohms | Socketable | Silver (Ag) | 4PDT (4 Form C) | 20 ms | 12 VDC | cURus TUV | 5 A | 625 W 1250 VA | Diode Lighted Indicator | 9.6 VDC | 70 °C | -40 C | Non Latching | General Purpose | Plug In | 20 ms | 125 VDC 250 VAC | 0.075 A | 1.2 VDC |
Panasonic Electronic Components | 650 Ohms | Socketable | Silver (Ag) | 4PDT (4 Form C) | 20 ms | 24 VDC | cURus TUV | 5 A | 625 W 1250 VA | Diode Lighted Indicator | 19.2 VDC | 70 °C | -40 C | Non Latching | General Purpose | Plug In | 20 ms | 125 VDC 250 VAC | 37 mA | 2.4 VDC |
 Panasonic Electronic Components | 11000 Ohms | Socketable | Silver (Ag) | 4PDT (4 Form C) | 20 ms | 110 VDC | cURus TUV | 5 A | 625 W 1250 VA | Lighted Indicator | 88 VDC | 70 °C | -40 C | Non Latching | General Purpose | Plug In | 20 ms | 125 VDC 250 VAC | 9.1 mA | 11 VDC |
Panasonic Electronic Components | 2.6 kOhms | Socketable | Gold (Au) Silver (Ag) | 4PDT (4 Form C) | 20 ms | 48 VDC | cURus TUV | 5 A | 625 W 1250 VA | Diode Lighted Indicator | 38.4 VDC | 70 °C | -40 C | Non Latching | General Purpose | Plug In | 20 ms | 125 VDC 250 VAC | 18 mA | 4.8 VDC |
