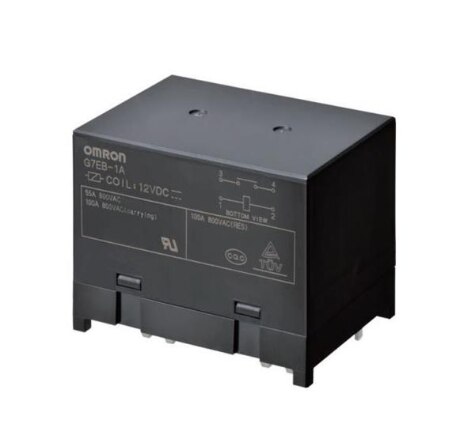

G7EB-1A Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
POWER RELAY, SPST-NO, 24 VDC, 100 A, G7EB SERIES, THROUGH HOLE, NON LATCHING
| Part | Coil Resistance | Contact Form | Relay Type | Coil Insulation | Termination Style | Must Operate Voltage | Must Release Voltage | Seal Rating | Operate Time | Coil Type | Mounting Type | Switching Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Release Time | Load - Max Switching | Contact Rating (Current) | Contact Material | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 206 Ohms | SPST-NO (1 Form A) | General Purpose | Class F | PC Pin | 18 VDC | 1.2 VDC | Sealed - Flux Protection | 30 ms | Non Latching | Through Hole | 60 VDC 800 VAC | 85 °C | -40 C | 24 VDC | 10 ms | 6000 W 48000 VA | 120 A | Silver Alloy Cadmium Free | 116.5 mA |
 Omron Electronics Inc-EMC Div | 51 Ohms | SPST-NO (1 Form A) | General Purpose | Class F | PC Pin | 9 VDC | 0.6 VDC | Sealed - Flux Protection | 30 ms | Non Latching | Through Hole | 60 VDC 800 VAC | 85 °C | -40 C | 12 VDC | 10 ms | 6000 W 48000 VA | 100 A | Silver Alloy Cadmium Free | 235.3 mA |
