MNG10 Series

Catalog

CONN SPADE TERM 10-12AWG #8 YEL

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Termination [x]	Length - Termination [x]	Material - Insulation	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Stud/Tab Size	Termination	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall [x]	Length - Overall [x]	Contact Finish	Terminal Type	Mounting Type	Insulation	Color	Tab Width [x]	Tab Width [x]	Tab Thickness	Tab Thickness	Gender	Number of Wire Entries	Thickness	Thickness	Width - Outer Edges	Width - Outer Edges

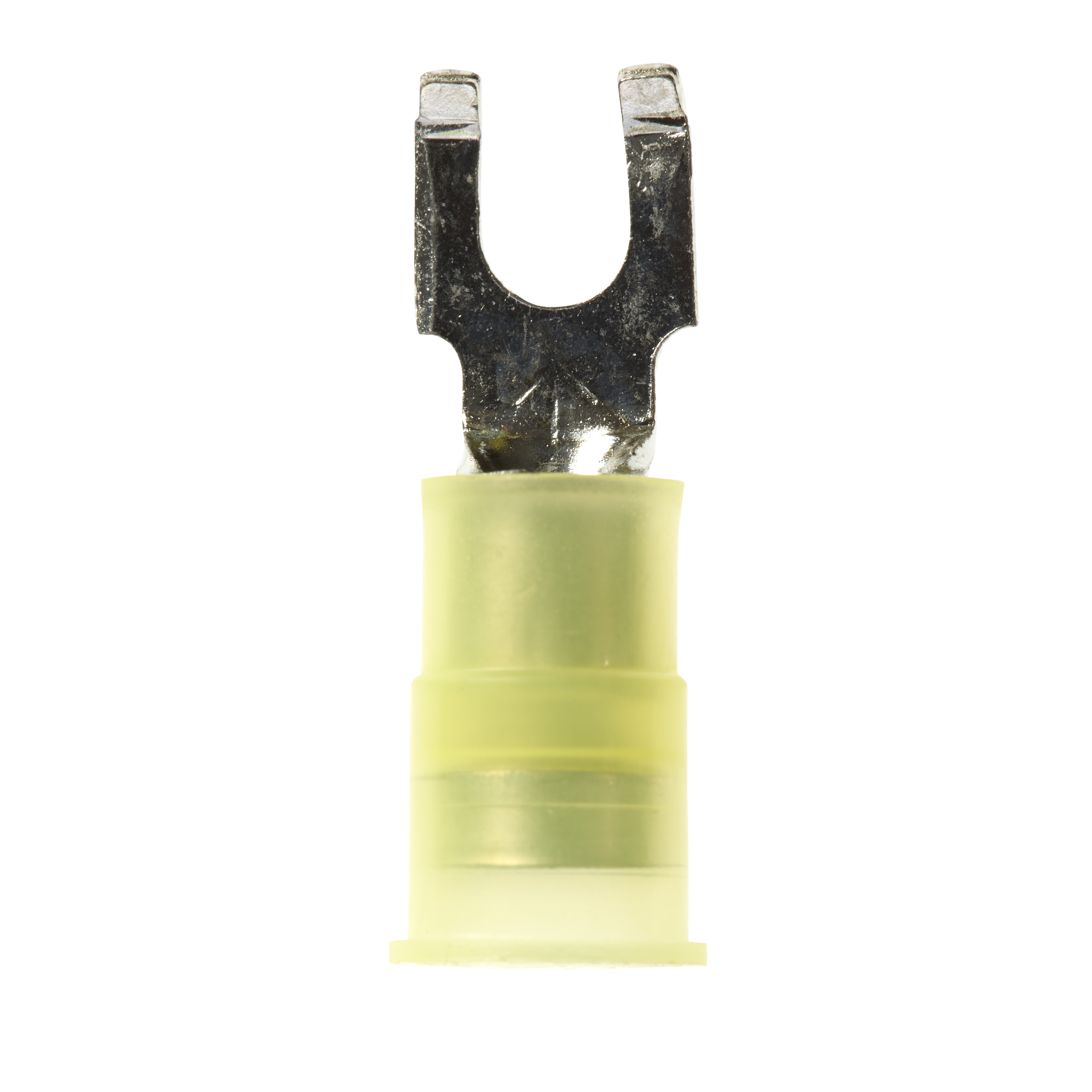

3M Electronic Specialty MNG10-8FBK	6.35 mm	0.25 in	0.55 in	13.97 mm	Nylon Polyamide (PA)	7.37 mm	0.29 in	8 Stud	Crimp	10 AWG	12 AWG	Copper ETP	0.32 in	8.13 mm	26.16 mm	1.03 in	Tin	Standard	Free Hanging (In-Line)	Insulated	Yellow

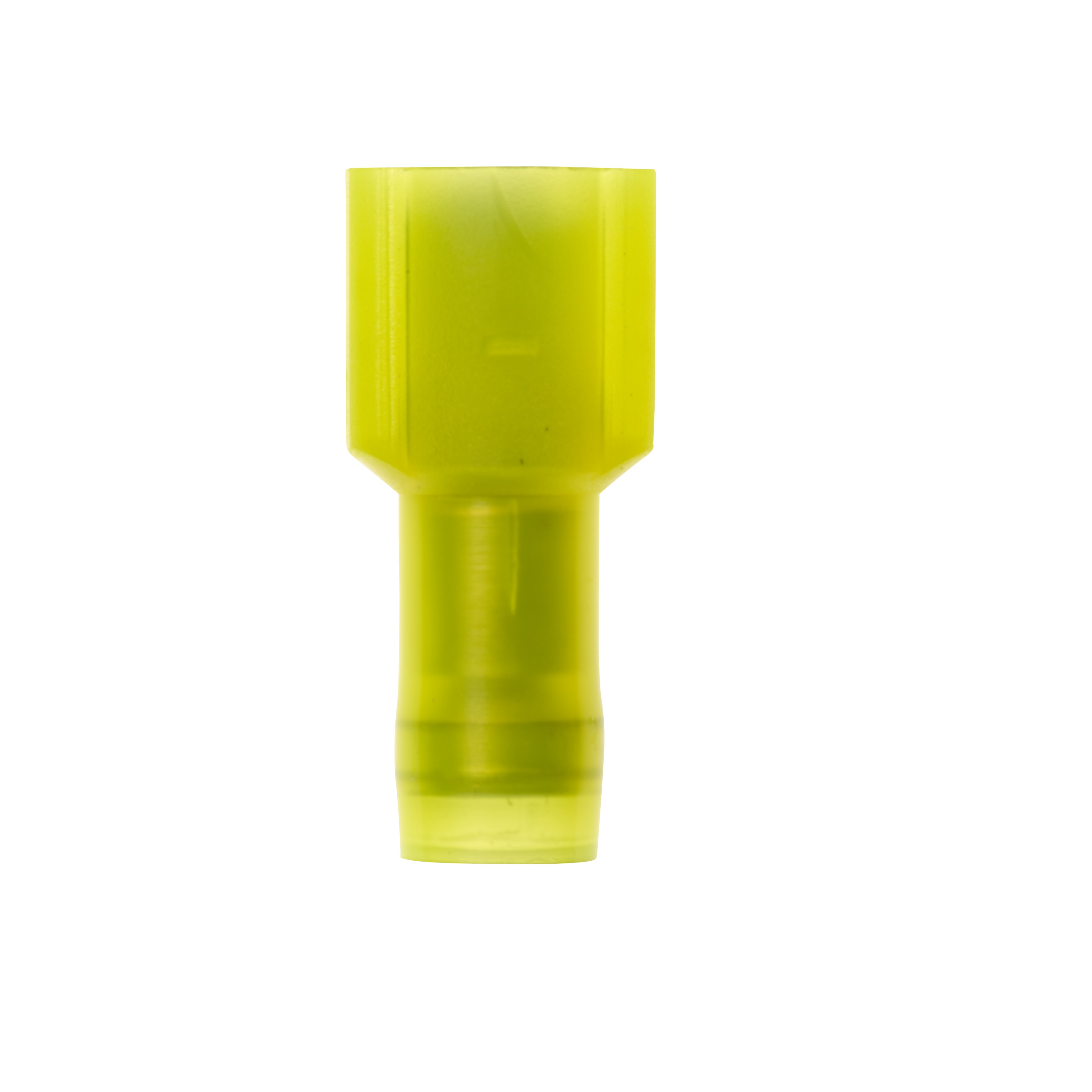

3M Electronic Specialty MNG10-250DMK	6.35 mm	0.25 in							Crimp	10 AWG	12 AWG	Copper ETP			26.67 mm	1.05 in	Tin	Standard	Free Hanging (In-Line)	Non-Mating End Insulated	Yellow	6.35 mm	0.25 in	0.81 mm	0.032 in	Male
3M Electronic Specialty MNG10BCX-BOTTLE									Crimp	10 AWG	12 AWG							Butt Splice Individual Openings Inline		Fully Insulated	Yellow						2
3M Electronic Specialty MNG10-8FFBX-BOTTLE	6.35 mm	0.25 in	0.55 in	13.97 mm	Nylon Polyamide (PA)	7.37 mm	0.29 in	8 Stud	Crimp	10 AWG	12 AWG	Copper ETP	0.32 in	8.13 mm	26.16 mm	1.03 in	Tin	Flanged	Free Hanging (In-Line)	Insulated	Yellow

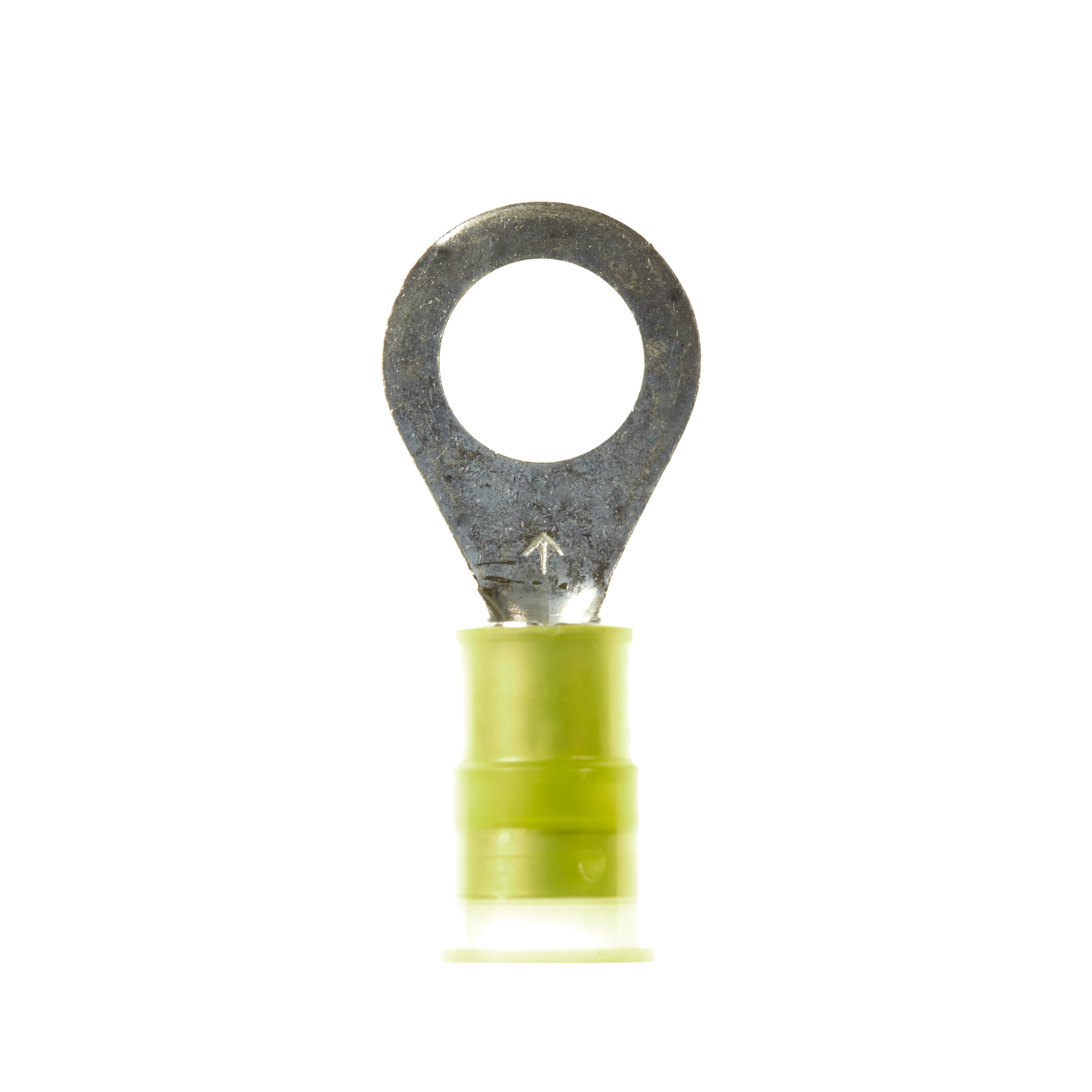

3M Electronic Specialty MNG10-516R/SX-BOTTLE	6.35 mm	0.25 in			Nylon Polyamide (PA)			0.3125 Stud	Crimp	10 AWG	12 AWG	Copper ETP			32 mm	1.26 "	Tin	Circular	Free Hanging (In-Line)	Insulated	Yellow							0.04 in	1.02 mm	0.53 in	13.46 mm
3M Electronic Specialty MNG10-10FLK	6.35 mm	0.25 in	0.55 in	13.97 mm	Nylon Polyamide (PA)	7.11 mm	0.28 in	10 Stud	Crimp	10 AWG	12 AWG	Copper ETP	0.32 in	8.13 mm	26.16 mm	1.03 in	Tin	Snap Spring	Free Hanging (In-Line)	Insulated	Yellow
3M Electronic Specialty MNG10BCMK									Crimp	10 AWG	12 AWG							Butt Splice Individual Openings Inline		Fully Insulated	Yellow						2
3M Electronic Specialty MNG10-14R/SK	6.35 mm	0.25 in			Nylon Polyamide (PA)			0.25 Stud	Crimp	10 AWG	12 AWG	Copper ETP			32 mm	1.26 "	Tin	Circular	Free Hanging (In-Line)	Insulated	Yellow							0.04 in	1.02 mm	0.53 in	13.46 mm

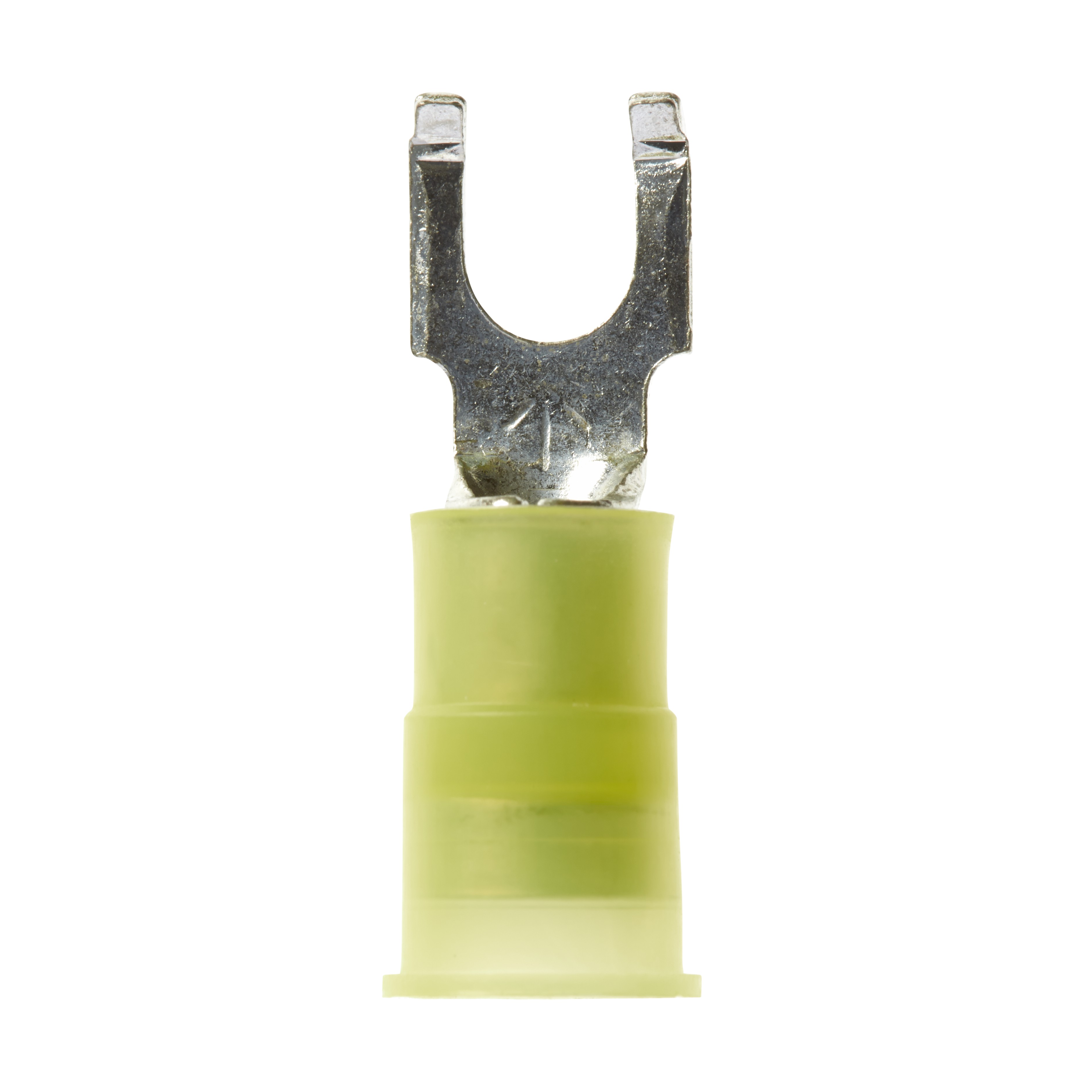

3M Electronic Specialty MNG10-10FFBK	6.35 mm	0.25 in	0.55 in	13.97 mm	Nylon Polyamide (PA)	7.37 mm	0.29 in	10 Stud	Crimp	10 AWG	12 AWG	Copper ETP	0.32 in	8.13 mm	26.16 mm	1.03 in	Tin	Flanged	Free Hanging (In-Line)	Insulated	Yellow
3M Electronic Specialty MNG10-8RX-BOTTLE	6.35 mm	0.25 in			Nylon Polyamide (PA)			8 Stud	Crimp	10 AWG	12 AWG	Copper ETP	0.38 in	9.65 mm	26.16 mm	1.03 in	Tin	Circular	Free Hanging (In-Line)	Insulated	Yellow							0.04 in	1.02 mm
