RDS-10S Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

Catalog

SWITCH ROTARY DIP BCD 0.1A 50V

...

Part	Pitch	Pitch	Voltage Rating	Termination Style	Features	Mounting Type	Actuator Level	Contact Material	Contact Finish	Length [x]	Length [x]	Actuator Type	Electrical Life	Circuit	Body Material	Washable	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Length	Length

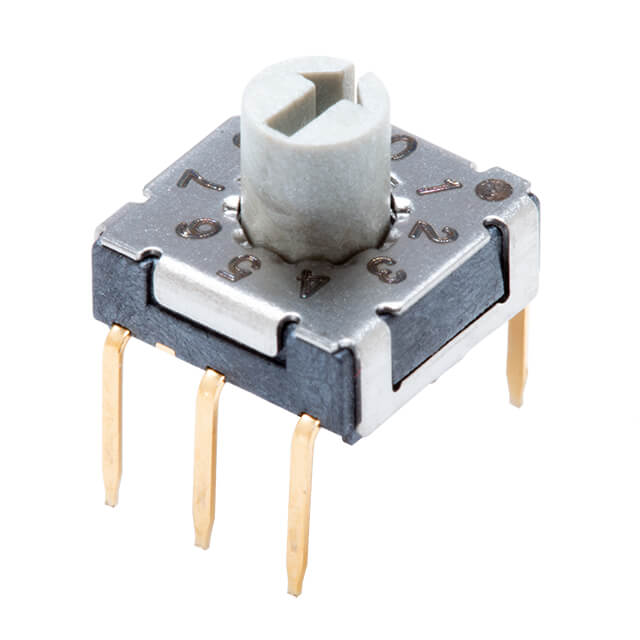

Same Sky (Formerly CUI Devices) RDS-10S-7229-R-D	2.54 mm	0.1 "	50 V	PC Pin	IP67 - Dust Tight Waterproof	Through Hole	Raised	Copper Alloy	Gold	7.2 mm	0.283 in	Rotary with Shaft	10000 Cycles	BCD	Liquid Crystal Polymer (LCP)		100 mA	85 °C	-40 C	10	5.9 mm	0.232 "
Same Sky (Formerly CUI Devices) RDS-10S-7229-S-SMT-TR	2.54 mm	0.1 "	50 V	Gull Wing	IP67 - Dust Tight Waterproof	Surface Mount	Raised	Copper Alloy	Gold	7.2 mm	0.283 in	Rotary with Shaft	10000 Cycles	BCD	Liquid Crystal Polymer (LCP)		100 mA	85 °C	-40 C	10	6 mm	0.236 in
Same Sky (Formerly CUI Devices) RDS-10S-7229-A-SMT-TR	2.54 mm	0.1 "	50 V	Gull Wing	IP67 - Dust Tight Waterproof	Surface Mount	Flush Recessed	Copper Alloy	Gold	7.2 mm	0.283 in	Rotary for Tool	10000 Cycles	BCD	Liquid Crystal Polymer (LCP)		100 mA	85 °C	-40 C	10	3 mm	0.118 in

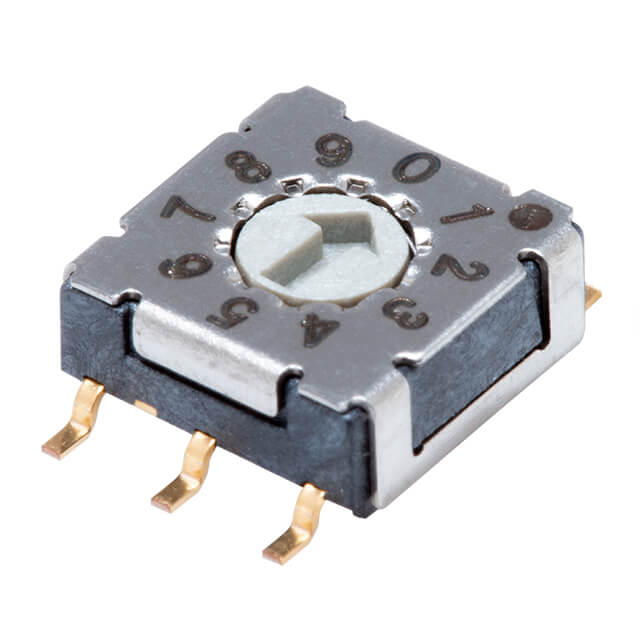

Same Sky (Formerly CUI Devices) RDS-10S-7229-A-SMT	2.54 mm	0.1 "	50 V	Gull Wing	IP67 - Dust Tight Waterproof	Surface Mount	Flush Recessed	Copper Alloy	Gold	7.2 mm	0.283 in	Rotary for Tool	10000 Cycles	BCD	Liquid Crystal Polymer (LCP)		100 mA	85 °C	-40 C	10	3 mm	0.118 in
Same Sky (Formerly CUI Devices) RDS-10S-7229-C-ASMT-TR	1.27 mm		50 V	Gull Wing	IP67 - Dust Tight Waterproof	Right Angle Surface Mount	Flush Recessed	Copper Alloy	Gold	7.2 mm	0.283 in	Rotary for Tool	10000 Cycles	BCD	Liquid Crystal Polymer (LCP)		100 mA	85 °C	-40 C	10	7.4 mm	0.291 in	0.05 "	Half
Same Sky (Formerly CUI Devices) RDS-10S-7229-S-D	2.54 mm	0.1 "	50 V	PC Pin	IP67 - Dust Tight Waterproof	Through Hole	Raised	Copper Alloy	Gold	7.2 mm	0.283 in	Rotary with Shaft	10000 Cycles	BCD	Liquid Crystal Polymer (LCP)		100 mA	85 °C	-40 C	10	5.9 mm	0.232 "
Same Sky (Formerly CUI Devices) RDS-10S-74365-45A-D	2.54 mm	0.1 "	42 VDC	PC Pin	IP67 - Dust Tight Waterproof	Through Hole	Raised	Copper Alloy	Gold			Rotary with Shaft		BCD			100 mA	125 °C	-60 °C	10

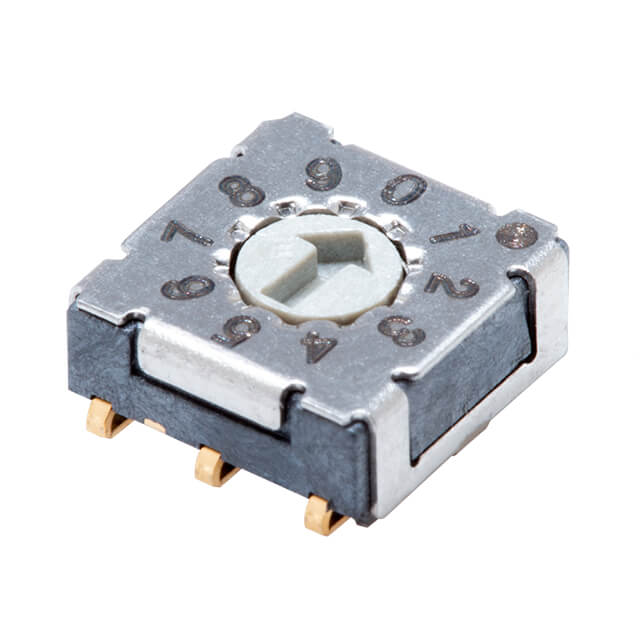

Same Sky (Formerly CUI Devices) RDS-10S-7229-A-JSMT-TR	2.54 mm	0.1 "	50 V	J Lead	IP67 - Dust Tight Waterproof	Surface Mount	Flush Recessed	Copper Alloy	Gold			Rotary for Tool		BCD			100 mA	85 °C	-40 C	10	3 mm	0.118 in
Same Sky (Formerly CUI Devices) RDS-10S-74385-SMT	2.54 mm	0.1 "	42 VDC	Gull Wing	IP67 - Dust Tight Waterproof	Surface Mount	Flush Recessed	Copper Alloy	Gold			Rotary for Tool	25000 Steps	BCD	Liquid Crystal Polymer (LCP)		100 mA	125 °C	-60 °C	10	3.85 mm	0.152 in			7.4 mm	0.291 in
Same Sky (Formerly CUI Devices) RDS-10S-7229-R-JSMT-TR	2.54 mm	0.1 "	50 V	J Lead	IP67 - Dust Tight Waterproof	Surface Mount	Raised	Copper Alloy	Gold			Rotary with Shaft		BCD			100 mA	85 °C	-40 C	10	6 mm	0.236 in
