RTH340 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

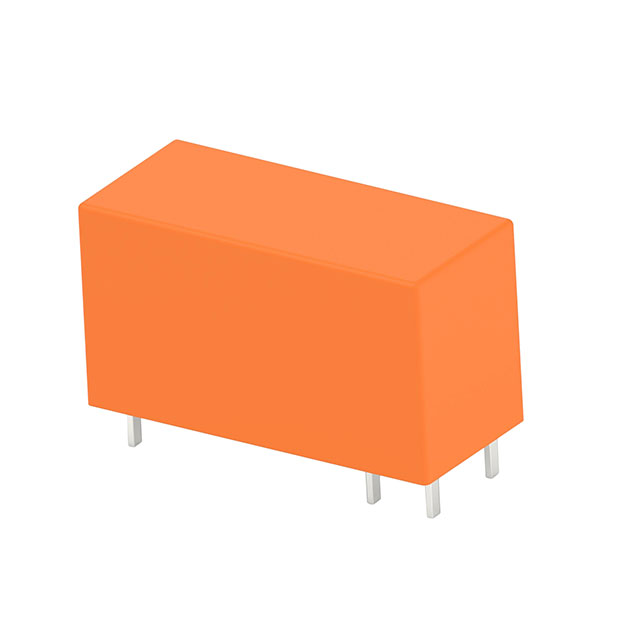

RELAY GEN PURPOSE SPST 16A 12V
| Part | Coil Resistance | Relay Type | Operate Time | Coil Current | Coil Type | Termination Style | Contact Material | Release Time | Coil Voltage | Mounting Type | Must Release Voltage | Coil Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Load - Max Switching | Contact Form | Switching Voltage [Max] | Approval Agency | Contact Rating (Current) | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 360 Ohms | General Purpose | 8 ms | 33.3 mA | Non Latching | PC Pin | Silver Nickel (AgNi) | 6 ms | 12 VDC | Through Hole | 1.2 VDC | Class F | -40 C | 105 ░C | 6400 VA | SPST-NO (1 Form A) | 400 VAC | CQC CSA cURus VDE | 16 A | 8.4 VDC |
