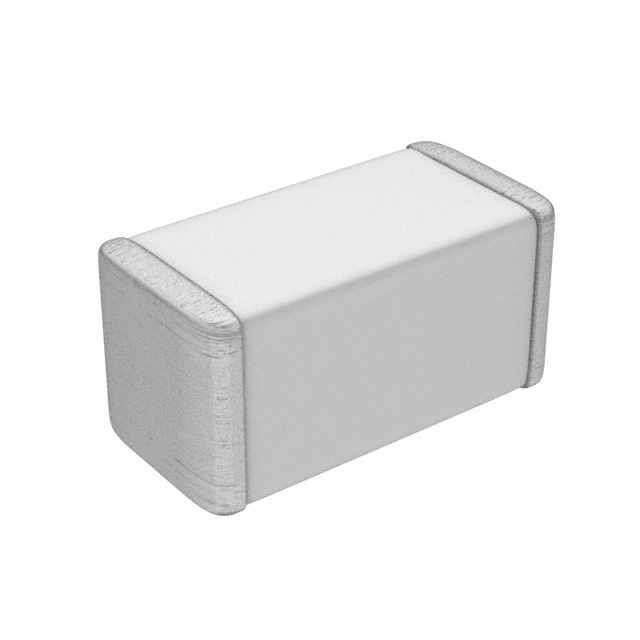

MLK1005 Series

Catalog

RF INDUCTORS - SMD SUGGESTED ALTERNATE MLG1005S82NJTD25

Part	Shielding	Package / Case	Tolerance	Frequency - Self Resonant	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Supplier Device Package	Q @ Freq	Type	Current Rating (Amps)	Material - Core	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	Ratings	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)
TDK Corporation MLK1005S82NJTD25	Unshielded	0402 (1005 Metric)	5 %	1.3 GHz	-55 C	125 °C	0.02 in	0.5 mm	0.039 "	1 mm	0402 (1005 Metric)	6 100 MHz	Multilayer	150 mA	Non-Magnetic	Surface Mount	0.6 mm	0.024 in	82 nH	AEC-Q200	1.8 Ohm	100 MHz
TDK Corporation MLK1005S1N1STD25	Unshielded	0402 (1005 Metric)	0.3 nH	11.5 GHz	-55 C	125 °C	0.02 in	0.5 mm	0.039 "	1 mm	0402 (1005 Metric)	5 100 MHz	Multilayer	0.5 A	Non-Magnetic	Surface Mount	0.6 mm	0.024 in	1.1 nH	AEC-Q200	120 mOhm	100 MHz
TDK Corporation MLK1005S4N7STD25	Unshielded	0402 (1005 Metric)	0.3 nH	6 GHz	-55 C	125 °C	0.02 in	0.5 mm	0.039 "	1 mm	0402 (1005 Metric)		Multilayer	400 mA	Non-Magnetic	Surface Mount	0.6 mm	0.024 in	4.7 nH	AEC-Q200	280 mOhm	100 MHz	7	100 MHz
TDK Corporation MLK1005S5N6STD25	Unshielded	0402 (1005 Metric)	0.3 nH	5.7 GHz	-55 C	125 °C	0.02 in	0.5 mm	0.039 "	1 mm	0402 (1005 Metric)		Multilayer	400 mA	Non-Magnetic	Surface Mount	0.6 mm	0.024 in	5.6 nH	AEC-Q200	300 mOhm	100 MHz	7	100 MHz
TDK Corporation MLK1005S2N4ST000	Unshielded	0402 (1005 Metric)	0.3 nH	7.8 GHz	-55 C	125 °C	0.02 in	0.5 mm	0.039 "	1 mm	0402 (1005 Metric)	6 100 MHz	Multilayer	0.5 A	Non-Magnetic	Surface Mount	0.6 mm	0.024 in	2.4 nH			100 MHz			200 mOhm
