OSTTJ18 Series

Catalog

TERM BLOCK PLUG 18POS STR 5MM

Part	Material Flammability Rating	Housing Material	Torque - Screw	Torque - Screw	Wire Strip Length [Min]	Wire Strip Length [Max]	Contact Material	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - UL	Mounting Type	Pitch	Pitch	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Type	Color	Number of Positions	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Levels	Positions Per Level

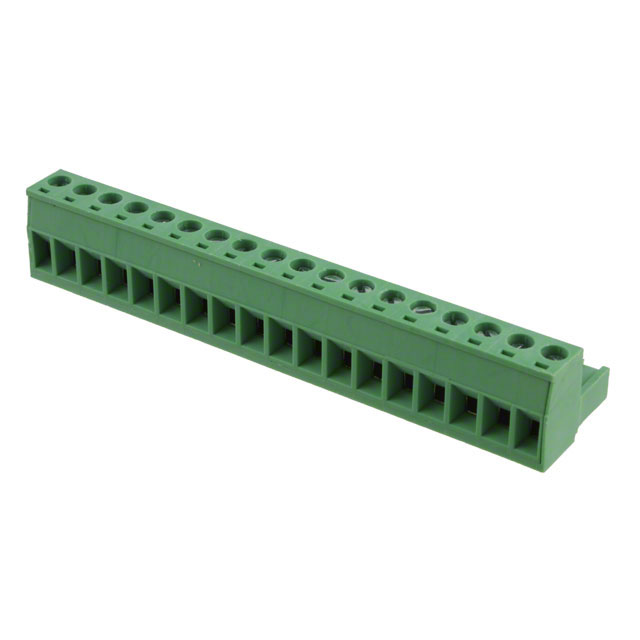

On Shore Technology Inc. OSTTJ187150	UL94 V-0	Brass	0.56 Nm	5 Lb-In	7 mm	8 mm	Brass	Screw	115 °C	-40 C	300 V	Free Hanging (In-Line)	0.197 in	5 mm	0.34 mm²	2.5 mm²	Plug Female Sockets	Green	18	30 AWG	12 AWG	1	18
