IPU80R600 Series
Manufacturer: INFINEON
Beta
⌘K

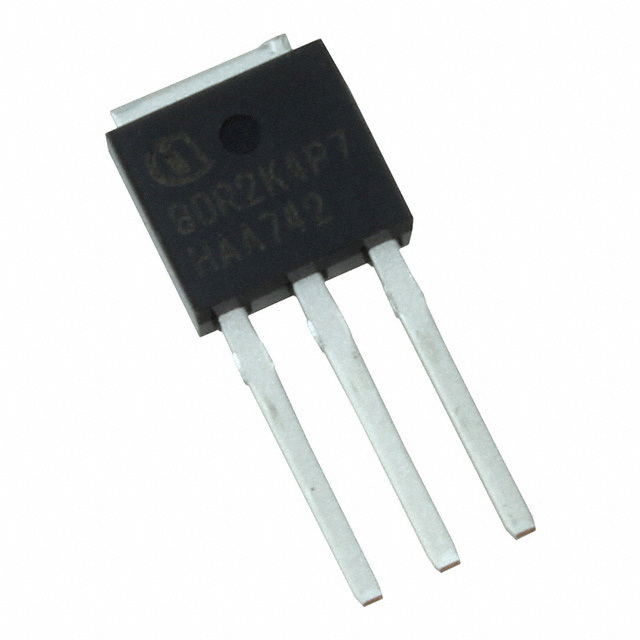

COOLMOS™ P7 N-CHANNEL SUPERJUNCTION MOSFET 800 V ; IPAK TO-251 PACKAGE; 600 MOHM; PRICE/PERFORMANCE
| Part | Mounting Type | FET Type | Input Capacitance (Ciss) (Max) @ Vds [Max] | Drain to Source Voltage (Vdss) | Power Dissipation (Max) | Gate Charge (Qg) (Max) @ Vgs [Max] | Vgs(th) (Max) @ Id [Max] | Supplier Device Package | Vgs (Max) | Drive Voltage (Max Rds On, Min Rds On) | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Technology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | Through Hole | N-Channel | 570 pF | 800 V | 60 W | 20 nC | 3.5 V | PG-TO251-3 | 20 V | 10 V | IPAK TO-251-3 Short Leads TO-251AA | 150 °C | -55 °C | 8 A | 600 mOhm | MOSFET (Metal Oxide) |
