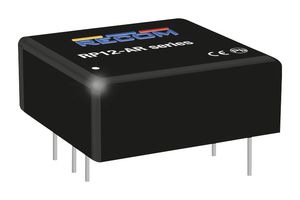

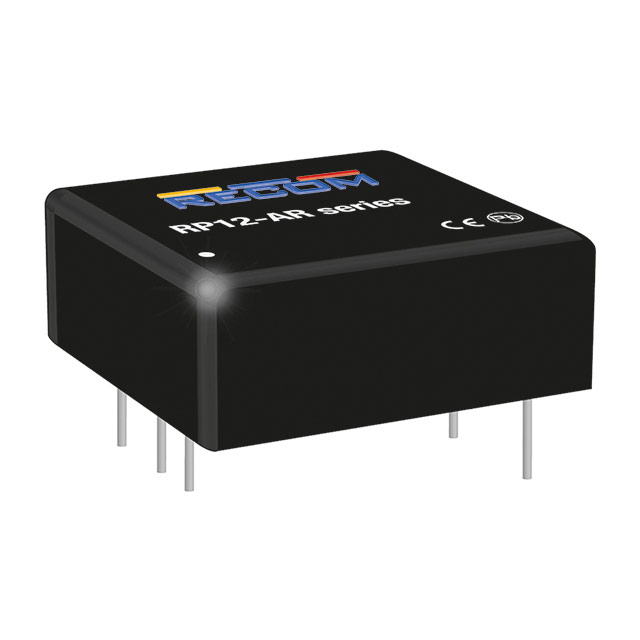

RP12-AR Series
Isolated DC/DC Converters - Through Hole 12W 36-160Vin 24Vout 500mA
Manufacturer: Recom Power
Catalog
Isolated DC/DC Converters - Through Hole 12W 36-160Vin 24Vout 500mA
Beta
⌘K
Isolated DC/DC Converters - Through Hole 12W 36-160Vin 24Vout 500mA
Isolated DC/DC Converters - Through Hole 12W 36-160Vin 24Vout 500mA
Isolated DC/DC Converters - Through Hole 12W 36-160Vin 24Vout 500mA
| Part | Voltage - Input (Max) [Max] | Number of Outputs | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Current - Output (Max) | Package / Case | Voltage - Output 2 | Voltage - Isolation | Features | Power (Watts) | Efficiency | Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Min) [Min] | Approval Agency | Mounting Type | Voltage - Output 1 | Applications | Current - Output (Max) [Max] | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 160 V | 2 | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 400 mA | 6-DIP Module 5 Leads | -15 V | 3000 V | OCP OVP SCP UVLO | 12 W | 89 % | Isolated Module | -40 °C | 100 °C | 36 V | CE | Through Hole | 15 V | ITE (Commercial) Railway | ||
 Recom Power | 160 V | 1 | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 6-DIP Module | 3000 V | OCP OVP Remote On/Off SCP UVLO | 12 W | 88 % | Isolated Module | -40 °C | 100 °C | 36 V | CE | Through Hole | 3.3 V | ITE (Commercial) Railway | 3.63 A | Active High Enable | ||
 Recom Power | 160 V | 1 | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 6-DIP Module | 3000 V | OCP OVP Remote On/Off SCP UVLO | 12 W | 89 % | Isolated Module | -40 °C | 100 °C | 36 V | CE | Through Hole | 15 V | ITE (Commercial) Railway | 0.8 A | Active Low Enable | ||
 Recom Power | 160 V | 1 | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 6-DIP Module | 3000 V | OCP OVP Remote On/Off SCP UVLO | 12 W | 89 % | Isolated Module | -40 °C | 100 °C | 36 V | CE | Through Hole | 5 V | ITE (Commercial) Railway | 2.4 A | Active High Enable | ||
Recom Power | 160 V | 1 | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 6-DIP Module 5 Leads | 3000 V | OCP OVP SCP UVLO | 12 W | 90 % | Isolated Module | -40 °C | 100 °C | 36 V | CE | Through Hole | 24 V | ITE (Commercial) Railway | 500 mA | |||
 Recom Power | 160 V | 2 | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 250 mA | 6-DIP Module | -24 V | 3000 V | OCP OVP Remote On/Off SCP UVLO | 12 W | 90 % | Isolated Module | -40 °C | 100 °C | 36 V | CE | Through Hole | 24 V | ITE (Commercial) Railway | Active Low Enable | |
Recom Power | 160 V | 1 | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 6-DIP Module 5 Leads | 3000 V | OCP OVP SCP UVLO | 12 W | 89 % | Isolated Module | -40 °C | 100 °C | 36 V | CE | Through Hole | 12 V | ITE (Commercial) Railway | 1 A | |||
Recom Power | 160 V | 2 | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 500 mA | 6-DIP Module | -12 V | 3000 V | OCP OVP Remote On/Off SCP UVLO | 12 W | 89 % | Isolated Module | -40 °C | 100 °C | 36 V | CE | Through Hole | 12 V | ITE (Commercial) Railway | Active Low Enable | |
Recom Power | 160 V | 1 | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 6-DIP Module | 3000 V | OCP OVP Remote On/Off SCP UVLO | 12 W | 89 % | Isolated Module | -40 °C | 100 °C | 36 V | CE | Through Hole | 5 V | ITE (Commercial) Railway | 2.4 A | Active Low Enable | ||
Recom Power | 160 V | 1 | 0.39 " | 9.9 mm | 1 in | 1 " | 25.4 mm | 25.4 mm | 6-DIP Module | 3000 V | OCP OVP Remote On/Off SCP UVLO | 12 W | 89 % | Isolated Module | -40 °C | 100 °C | 36 V | CE | Through Hole | 12 V | ITE (Commercial) Railway | 1 A | Active High Enable |
