SCF-02 Series
Manufacturer: KEMET
Beta
⌘K

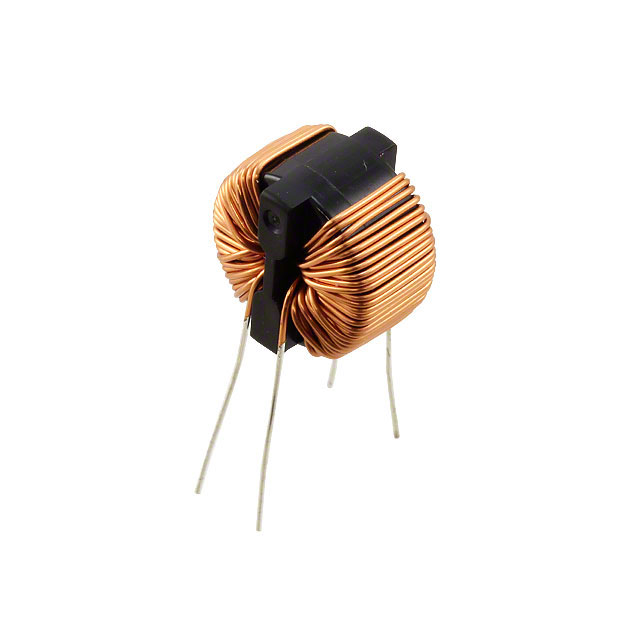

CHOKE, COMMON MODE, 13 MH, 2 A, 250 VAC, RADIAL LEADED, SCF SERIES
| Part | Filter Type | Height (Max) [diameter] | Height (Max) [diameter] | Package / Case | Features | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Number of Lines | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage Rating - DC | Inductance @ Frequency | Current Rating (Max) [Max] | DC Resistance (DCR) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | Power Line | 0.591 in | 15 mm | Vertical No Base 4 PC Pin | Nanocrystalline Core | 15 mm | 0.472 " | 0.591 in | 12 mm | 2 | 250 V | 120 °C | -40 C | Through Hole | 250 V | 13 mH | 2 A | 115 mOhm |
