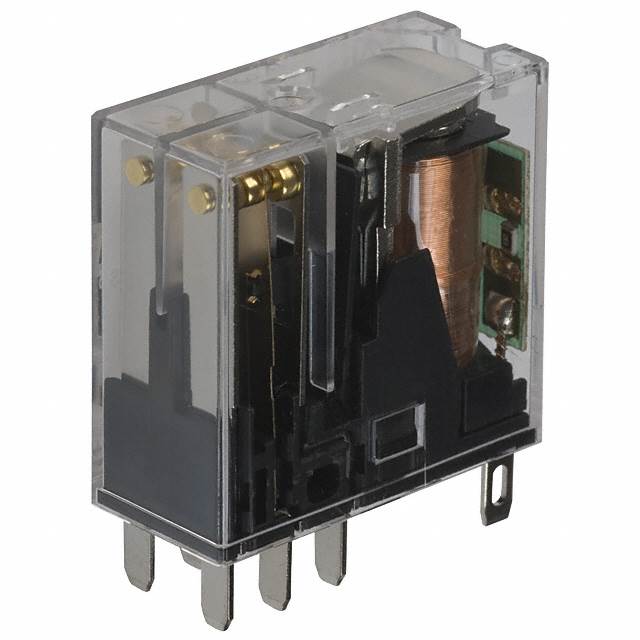

AHN221 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
RELAY GEN PURPOSE DPDT 5A 12V
| Part | Coil Resistance | Termination Style | Switching Voltage [Max] | Must Operate Voltage | Coil Type | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Coil Current | Mounting Type | Approval Agency | Load - Max Switching | Operate Time | Contact Material | Contact Rating (Current) | Coil Voltage | Must Release Voltage | Release Time | Contact Form |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 270 Ohms | Plug In | 30 VDC 250 VAC | 8.4 VDC | Non Latching | General Purpose | 70 °C | -40 C | Lighted Indicator | 44.4 mA | Socketable | cURus VDE | 150 W 1250 VA | 15 ms | Silver Nickel (AgNi) | 5 A | 12 VDC | 1.2 VDC | 5 ms | DPDT (2 Form C) |
 Panasonic Electronic Components | 1.09 kOhms | Plug In | 30 VDC 250 VAC | 16.8 VDC | Non Latching | General Purpose | 70 °C | -40 C | Lighted Indicator | 22 mA | Socketable | cURus VDE | 150 W 1250 VA | 15 ms | Silver Nickel (AgNi) | 5 A | 24 VDC | 2.4 VDC | 5 ms | DPDT (2 Form C) |
Panasonic Electronic Components | 22.83 kOhms | Plug In | 30 VDC 250 VAC | 77 VDC | Non Latching | General Purpose | 70 °C | -40 C | Lighted Indicator | 4.8 mA | Socketable | cURus VDE | 150 W 1250 VA | 15 ms | Silver Nickel (AgNi) | 5 A | 110 VDC | 16.5 VDC | 5 ms | DPDT (2 Form C) |
Panasonic Electronic Components | 47 Ohms | Plug In | 30 VDC 250 VAC | 3.5 VDC | Non Latching | General Purpose | 70 °C | -40 C | Lighted Indicator | 106.4 mA | Socketable | cURus VDE | 150 W 1250 VA | 15 ms | Silver Nickel (AgNi) | 5 A | 5 VDC | 0.5 VDC | 5 ms | DPDT (2 Form C) |
