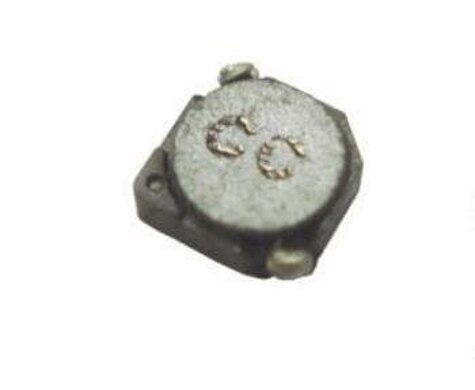

BPSC Series
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
Manufacturer: Pulse Electronics
Catalog
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
Beta
⌘K
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
Power Inductors - SMD Chilisin Power - Inductor (IND) Ferrite SMD Shielded Type
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Inductance | Tolerance | Current - Saturation (Isat) | Inductance Frequency - Test | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Material - Core | Mounting Type | Shielding | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Package / Case | DC Resistance (DCR) [Max] | Height - Seated (Max) | Height - Seated (Max) [Max] | Supplier Device Package | Current Rating (Amps) | Height - Seated (Max) [Max] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | -30 ░C | 100 °C | 680 µH | 20 % | 100 mA | 100 kHz | 4.7 mm | 0.185 in | 4.7 mm | 0.185 in | Ferrite | Surface Mount | Shielded | 0.118 " | 3 mm | Nonstandard | 5.2 Ohm | ||||||
 Pulse Electronics | -40 C | 125 °C | 150 µH | 20 % | 1.3 A | 1 kHz | 12.5 mm | 0.492 " | 12.5 mm | 0.492 " | Ferrite | Surface Mount | Shielded | Nonstandard | 230 mOhm | 6 mm | 0.236 " | ||||||
 Pulse Electronics | -30 ░C | 100 °C | 6.8 µH | 20 % | 1.12 A | 100 kHz | 4.7 mm | 0.185 in | 4.7 mm | 0.185 in | Ferrite | Surface Mount | Shielded | 0.118 " | 3 mm | Nonstandard | 108.9 mOhm | ||||||
Pulse Electronics | -30 ░C | 100 °C | 33 µH | 30 % | 100 kHz | 4 mm | 0.157 in | 4 mm | 0.157 " | Ferrite | Surface Mount | Shielded | 0.118 " | 3 mm | 1616 (4040 Metric) | 215 mOhm | 1616 | 0.28 A | |||||
Pulse Electronics | -40 C | 125 °C | 560 µH | 30 % | 950 mA | 1 kHz | 12.5 mm | 0.492 " | 12.5 mm | 0.492 " | Ferrite | Surface Mount | Shielded | Nonstandard | 880 mOhm | 0.315 in | 8 mm | ||||||
Pulse Electronics | -40 C | 125 °C | 47 µH | 30 % | 2.4 A | 1 kHz | 12.5 mm | 0.492 " | 12.5 mm | 0.492 " | Ferrite | Surface Mount | Shielded | Nonstandard | 84 mOhm | 6 mm | 0.236 " | ||||||
Pulse Electronics | -30 ░C | 100 °C | 4.7 ÁH | 30 % | 1.6 A | 10 kHz | 5.7 mm | 0.224 " | 5.7 mm | 0.224 " | Ferrite | Surface Mount | Shielded | 0.118 " | 3 mm | Nonstandard | 38 mOhm | ||||||
Pulse Electronics | -30 ░C | 100 °C | 10 µH | 30 % | 100 kHz | 4 mm | 0.157 in | 4 mm | 0.157 " | Ferrite | Surface Mount | Shielded | 0.118 " | 3 mm | 1616 (4040 Metric) | 1616 | 1.05 A | 145 mOhm | |||||
Pulse Electronics | -30 ░C | 100 °C | 30 % | 360 mA | 10 kHz | Ferrite | Surface Mount | Shielded | 0.118 " | 3 mm | Nonstandard | ||||||||||||
Pulse Electronics | -30 ░C | 100 °C | 33 µH | 30 % | 0.6 A | 10 kHz | 5.7 mm | 0.224 " | 5.7 mm | 0.224 " | Ferrite | Surface Mount | Shielded | 0.118 " | 3 mm | Nonstandard | 189 mOhm |
