B3WN Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

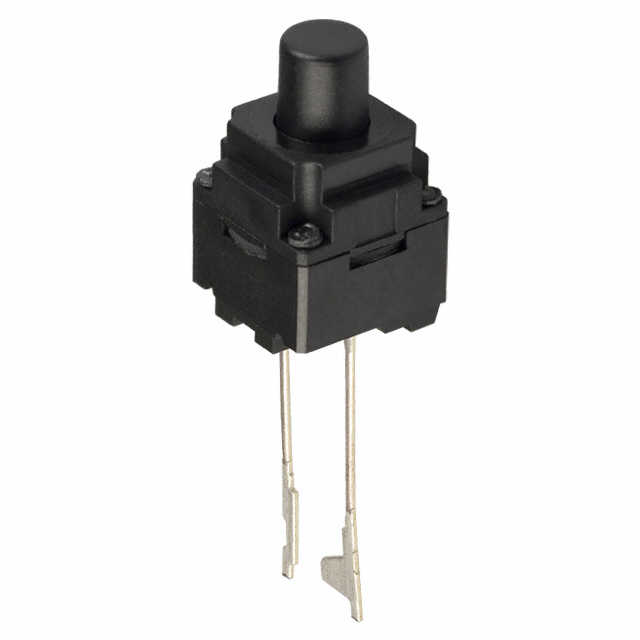

TACTILE SWITCH, B3WN SERIES, TOP ACTUATED, THROUGH HOLE, ROUND BUTTON, 200 GF, 50MA AT 12VDC
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Illumination | Switch Travel | Circuit | Outline [x] | Outline [y] | Actuator Type | Mechanical Life | Actuator Orientation | Ingress Protection | Features | Switch Function | Actuator Height off PCB, Vertical | Operating Force | Termination Style | Contact Rating @ Voltage | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 85 °C | -25 °C | Non-Illuminated | 0.3 mm | SPST-NO | 8 mm | 8 mm | Standard | 100000 Cycles | Top Actuated | IP67 - Dust Tight Waterproof | Sealed - Fully | Off-Mom | 13 mm | 0.2 kgf | PC Pin | 0.05 A 12 VDC | Through Hole |
