PTGLESAR Series
Manufacturer: Murata Electronics
Beta
⌘K

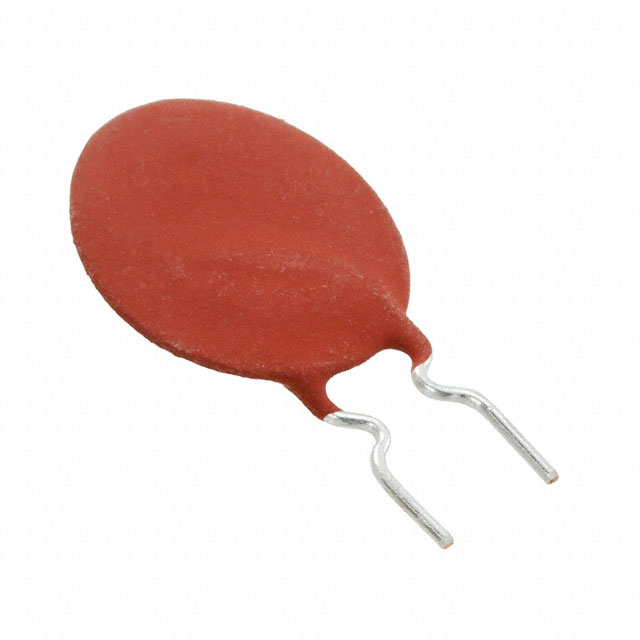

PTC RESET FUSE 16V 1.545A RADIAL
| Part | Current - Max [Max] | Voltage - Max [Max] | Current - Hold (Ih) (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Mounting Type | Type | Current - Trip (It) | Size / Dimension [custom] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [custom] | Lead Spacing | Lead Spacing | Resistance - 25°C (Typ) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 10 A | 16 V | 1.545 A | 85 °C | -30 ░C | 18.5 mm | 0.728 in | Through Hole | Ceramic | 2.855 A | 0.138 " | 13.5 mm | 0.531 in | 3.5 mm | 0.197 " | 5 mm | 150 mOhms | Disc Radial |
