76033 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

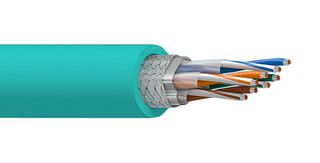

NETWORKING CABLE, SHIELDED, CAT6A, 26 AWG, 1000 FT, 305 M
| Part | Shield Coverage | Spool Size [x] | Spool Size [x] | Shield Material | Conductor Material | Wire Gauge | Jacket Color | Cable Type | Shield Type | Number of Conductors | Jacket (Insulation) Material | Conductor Insulation | Features | Ratings | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Conductor Strand [x] | Conductor Strand [x] | Operating Temperature [Max] | Operating Temperature [Min] | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 75 % 100 % | 304.8 m | 1000 ft | Aluminum Copper Tinned | Copper Tinned | 26 AWG | Teal | Multi-Pair Cat6a | Braid Foil | 8 | Thermoplastic Elastomer (TPE) | Polyethylene (PE) | Oil Resistant UV Resistant | UL Style 2463 | Industrial Network | 0.035 in | 0.889 mm | 600 V | 34 AWG | 7 | 80 °C | -40 C | Enter Number of Feet in Order Quantity |
