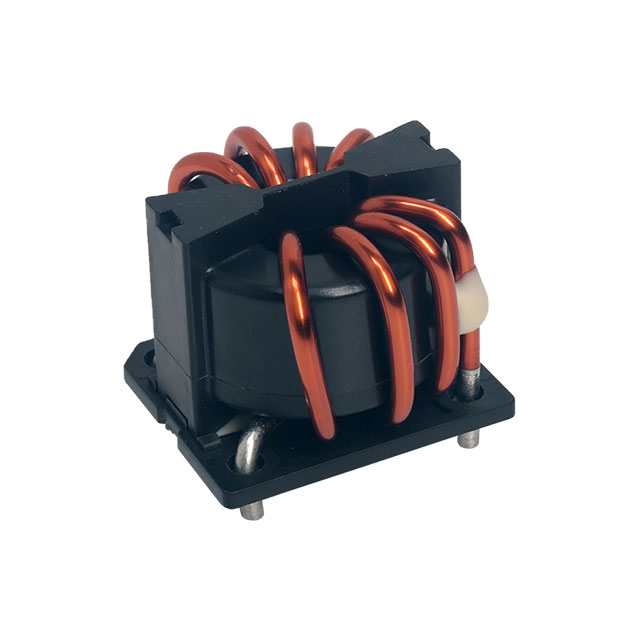

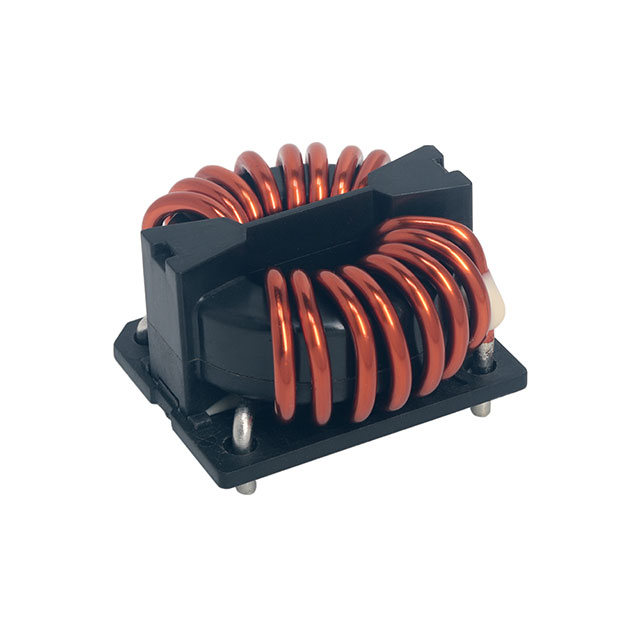

SCR-XV Series

Manufacturer: KEMET

Catalog

COMMON MODE CHOKES / FILTERS 1000V 0.78MH 19A ESR=37MOHMS AEC-Q200

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) (Max) [Max]	Inductance @ Frequency	Ratings	Number of Lines	Current Rating (Max) [Max]	Filter Type	Height (Max) [z]	Height (Max) [z]	Package / Case	Voltage Rating - DC	Voltage Rating - DC	Voltage Rating - AC	Voltage Rating - AC	Mounting Type	Height (Max) [z]	Height (Max) [Max] [z]	Height (Max)	Size / Dimension [diameter]	Size / Dimension [diameter]	Height (Max) [Max] [z]	DC Resistance (DCR) (Max)
KEMET SCR25XV-190-1R8A008JH	26.5 mm	38.5 mm	1.043 in	1.516 in	120 °C	-40 C	3.07 mOhm	100 kHz 780 µH	AEC-Q200	2	19 A	Power Line	35 mm	1.378 in	4 PC Pin Horizontal	1 kV	1 kVDC	1 kV	1 kV	Through Hole
KEMET SCR29XV-210-2R1A010JV	26.5 mm	41.5 mm	1.043 in	1.634 in	120 °C	-40 C	2.3 mOhm	610 µH	AEC-Q200	2	21 A	Power Line		38.7 mm	Vertical 4 PC Pin	1 kV	1 kVDC	1 kV	1 kV	Through Hole	1.524 in
KEMET SCR19XV-150-1R3A006JH	18.9 mm	30 mm	0.744 "	1.181 in	120 °C	-40 C	3.01 mOhm	100 kHz 220 µH	AEC-Q200	2	15 A	Power Line			4 PC Pin Horizontal	1 kV	1 kVDC	1 kV	1 kV	Through Hole		1.122 in	28.5 mm
KEMET SCR39XV-140-1R8A019JH					120 °C	-40 C		4.8 mH	AEC-Q200	2	14 A	Power Line			4 PC Pin Horizontal	1 kV	1 kVDC	1 kV	1 kV	Through Hole		1.299 in		2.087 "	53 mm	33 mm	8.66 mOhm
KEMET SCR29XV-120-1R6A017JH	26.5 mm	41.5 mm	1.043 in	1.634 in	120 °C	-40 C		1.76 mH 100 kHz	AEC-Q200	2	12 A	Power Line		38.7 mm	4 PC Pin Horizontal	1 kV	1 kVDC	1 kV	1 kV	Through Hole	1.524 in						6.45 mOhm
KEMET SCR29XV-110-1R5A019JH	26.5 mm	41.5 mm	1.043 in	1.634 in	120 °C	-40 C		2.2 mH	AEC-Q200	2	11 A	Power Line		38.7 mm	4 PC Pin Horizontal	1 kV	1 kVDC	1 kV	1 kV	Through Hole	1.524 in						8.07 mOhm
KEMET SCR39XV-190-2R1A014JH					120 °C	-40 C		2.6 mH	AEC-Q200	2	19 A	Power Line			4 PC Pin Horizontal	1 kV	1 kVDC	1 kV	1 kV	Through Hole		1.299 in		2.087 "	53 mm	33 mm	5.03 mOhm
KEMET SCR39XV-240-2R4A011JH					120 °C	-40 C		1.6 mH	AEC-Q200	2	24 A	Power Line			4 PC Pin Horizontal	1 kV	1 kVDC	1 kV	1 kV	Through Hole		1.299 in		2.087 "	53 mm	33 mm	3.04 mOhm
