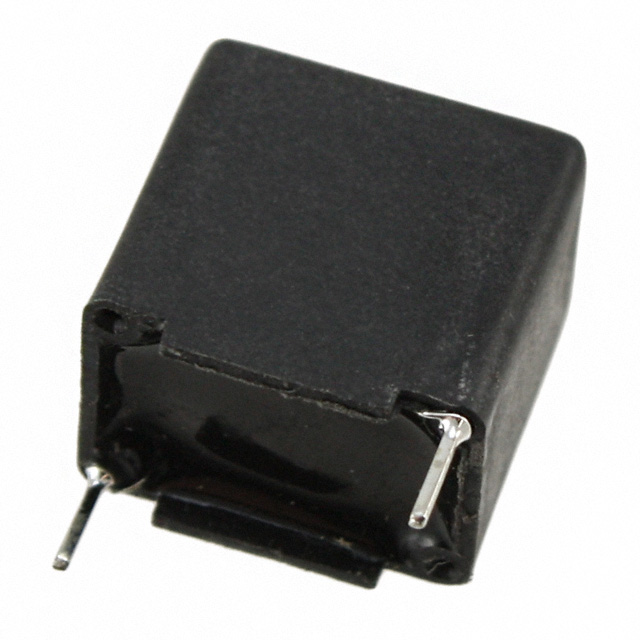

PE-526 Series
Manufacturer: Pulse Electronics
Beta
⌘K
POWER INDUCTORS - LEADED INDUCTOR
| Part | Type | Package / Case | Mounting Type | Inductance | Current Rating (Amps) | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | DC Resistance (DCR) | Shielding | Inductance Frequency - Test | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Tolerance | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | Toroidal | Radial Vertical - Corner Terminals | Through Hole | 150 µH | 1.7 A | 0.51 in | 12.95 mm | 18.03 mm | 0.71 in | 420 mOhm | Unshielded | 20 kHz | 0.71 " | 18.03 mm | 20 % | 130 °C | -40 C |
