BSC190 Series
Manufacturer: INFINEON
Beta
⌘K

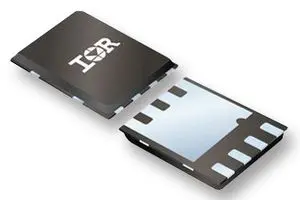

OPTIMOS™ 3 N-CHANNEL POWER MOSFET 120 V ; SUPERSO8 5X6 PACKAGE; 19 MOHM;
| Part | Vgs(th) (Max) @ Id | Operating Temperature [Max] | Operating Temperature [Min] | Vgs (Max) | Package / Case | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Supplier Device Package | Technology | Drain to Source Voltage (Vdss) | FET Type | Current - Continuous Drain (Id) @ 25°C | Gate Charge (Qg) (Max) @ Vgs [Max] | Mounting Type | Input Capacitance (Ciss) (Max) @ Vds [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 4 V | 150 °C | -55 °C | 20 V | 8-PowerTDFN | 10 V | 19 mOhm | PG-TDSON-8-1 | MOSFET (Metal Oxide) | 120 V | N-Channel | 8.6 A 44 A | 34 nC | Surface Mount | 2300 pF |
