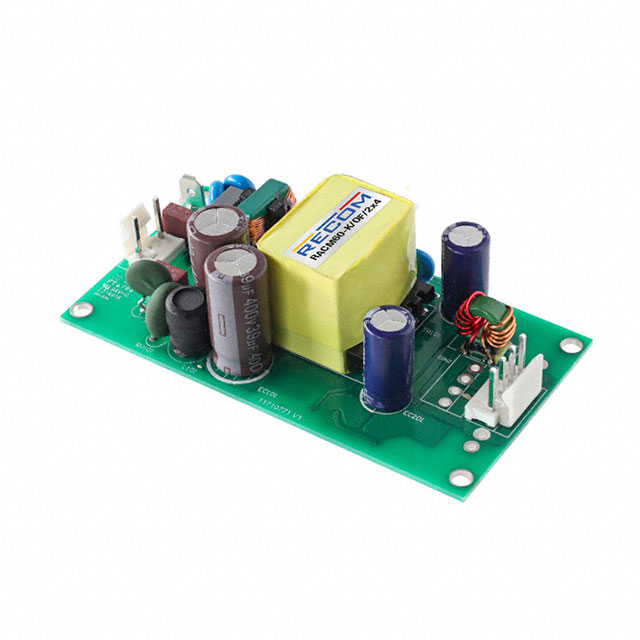

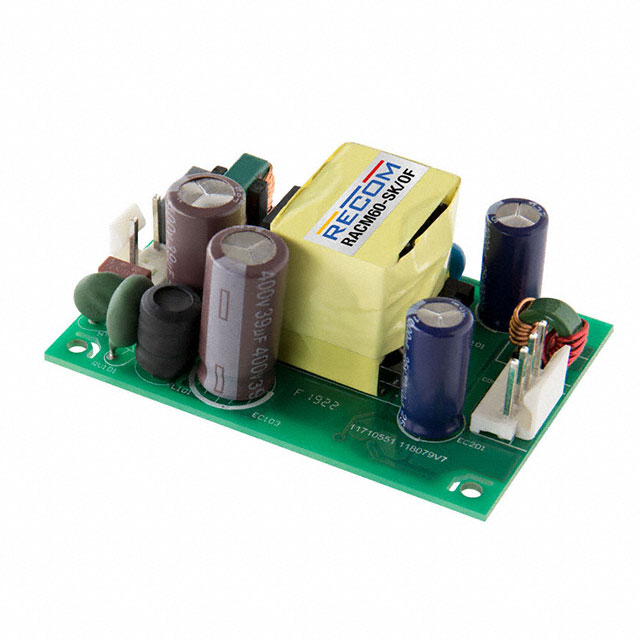

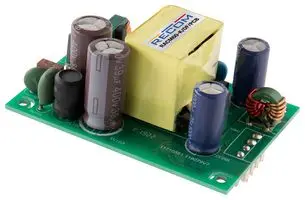

RACM60-K/OF Series
Manufacturer: Recom Power
Beta
⌘K
AC/DC OPEN FRAME POWER SUPPLY (PSU), 120 TO 370VDC, MEDICAL, 1 OUTPUT, 40 W, 80V AC TO 264V AC
| Part | Minimum Load Required | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Approval Agency | Number of Outputs | Voltage - Isolation | Applications | Features | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Standard Number | Voltage - Output 1 | Type | Efficiency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Package / Case | Current - Output (Max) | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | Chassis Mount | -40 °C | 85 °C | 8 A | 80 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus | 1 | 4000 V | Household Appliances ITE (Commercial) Medical | Universal Input | 40 W | 2.09 " | 3.09 in | 1.24 " | 31.5 mm | 53 mm | 78.4 mm | 60335-1 60601-1 62368-1 | 5 V | Open Frame | 89 % | |||||||
Recom Power | Chassis Mount | -40 °C | 85 °C | 2.5 A | 80 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus | 1 | 4000 V | Household Appliances ITE (Commercial) Medical | Universal Input | 60 W | 2.09 " | 3.09 in | 1.24 " | 31.5 mm | 53 mm | 78.4 mm | 60335-1 60601-1 62368-1 | 24 V | Open Frame | 90 % | |||||||
 Recom Power | Chassis Mount | -40 °C | 85 °C | 5 A | 80 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus | 1 | 4000 V | Household Appliances ITE (Commercial) Medical | Universal Input | 60 W | 31.5 mm | 53 mm | 101.6 mm | 60335-1 60601-1 62368-1 | 12 V | Open Frame | 90 % | 4 in | 2.09 in | 1.24 in | |||||||
 Recom Power | Chassis Mount | -40 °C | 85 °C | 8 A | 80 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus | 1 | 4000 V | Household Appliances ITE (Commercial) Medical | Universal Input | 40 W | 2.09 " | 3.09 in | 1.24 " | 31.5 mm | 53 mm | 78.4 mm | 60335-1 60601-1 62368-1 | 5 V | Open Frame | 89 % | |||||||
 Recom Power | Chassis Mount | -40 °C | 85 °C | 2.5 A | 80 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus | 1 | 4000 V | Household Appliances ITE (Commercial) Medical | Universal Input | 60 W | 2.09 " | 3.09 in | 1.24 " | 31.5 mm | 53 mm | 78.4 mm | 60335-1 60601-1 62368-1 | 24 V | Open Frame | 90 % | |||||||
Recom Power | Chassis Mount | -40 °C | 85 °C | 5 A | 80 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus | 1 | 4000 V | Household Appliances ITE (Commercial) Medical | Universal Input | 60 W | 2.09 " | 3.09 in | 1.24 " | 31.5 mm | 53 mm | 78.4 mm | 60335-1 60601-1 62368-1 | 12 V | Open Frame | 90 % | |||||||
 Recom Power | Through Hole | -40 °C | 85 °C | 80 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus | 1 | Household Appliances ITE (Commercial) Medical | Universal Input | 60 W | 2.09 " | 3.09 in | 1.39 in | 35.4 mm | 53 mm | 78.4 mm | 12 V | Open Frame | 90 % | 7-DIP Module 6 Leads | 5 A | ||||||||
 Recom Power | Chassis Mount | -40 °C | 85 °C | 1.25 A | 80 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus | 1 | 4000 V | Household Appliances ITE (Commercial) Medical | Universal Input | 60 W | 2.09 " | 3.09 in | 1.24 " | 31.5 mm | 53 mm | 78.4 mm | 60335-1 60601-1 62368-1 | 48 V | Open Frame | 90 % | |||||||
 Recom Power | Chassis Mount | -40 °C | 85 °C | 2.5 A | 80 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus | 1 | 4000 V | Household Appliances ITE (Commercial) Medical | Universal Input | 60 W | 31.5 mm | 53 mm | 101.6 mm | 60335-1 60601-1 62368-1 | 24 V | Open Frame | 90 % | 4 in | 2.09 in | 1.24 in | |||||||
 Recom Power | Through Hole | -40 °C | 85 °C | 80 VAC 120 VDC | 264 VAC 370 VDC | CB CE cURus | 1 | Household Appliances ITE (Commercial) Medical | Universal Input | 40 W | 2.09 " | 3.09 in | 1.39 in | 35.4 mm | 53 mm | 78.4 mm | 5 V | Open Frame | 89 % | 7-DIP Module 6 Leads | 8 A |
