MVU14 Series

Catalog

VINYL INSULATED BUTTED SEAM BLOCK FORK TERMINAL

Part	Material - Insulation	Length - Ring Center to Termination [custom]	Length - Ring Center to Termination [custom]	Length - Termination [x]	Length - Termination [x]	Contact Material	Insulation	Features	Terminal Type	Stud/Tab Size	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Termination	Length - Overall [x]	Length - Overall [x]	Color	Number of Wire Entries	Gender	Tab Thickness	Tab Thickness	Tab Width [x]	Tab Width [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Thickness	Thickness	Width - Outer Edges [x]	Width - Outer Edges [x]	Insulation Diameter	Insulation Diameter

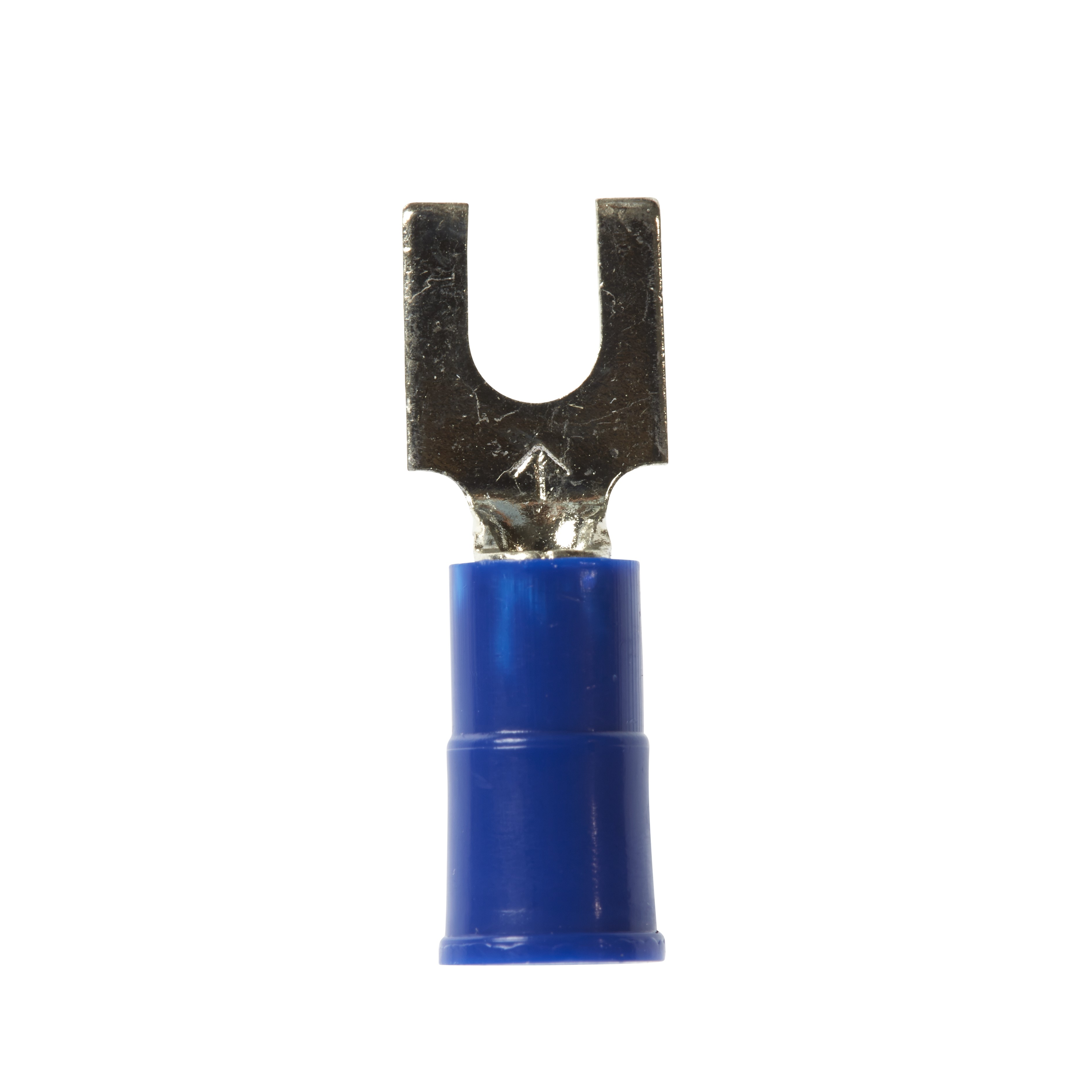

3M Electronic Specialty MVU14-6FBK	Vinyl	6.35 mm	0.25 "	11.43 mm	0.45 in	Copper ETP	Insulated	Butted Seam	Standard	6 Stud	Free Hanging (In-Line)	14 AWG	16 AWG	Tin	Crimp	0.85 in	21.59 mm	Blue
3M Electronic Specialty MVU14BCK							Fully Insulated		Butt Splice Individual Openings Inline			14 AWG	16 AWG		Crimp			Blue	2
3M Electronic Specialty MVU14-250DMFK						Brass	Non-Mating End Insulated	Butted Seam	Stacked		Free Hanging (In-Line)	14 AWG	16 AWG	Tin	Crimp	0.87 in	22.1 mm	Blue		Female Male	0.81 mm	0.032 in	6.35 mm	0.25 in
3M Electronic Specialty MVU14-8FK	Vinyl			11.43 mm	0.45 in	Copper ETP	Insulated	Butted Seam	Standard	8 Stud	Free Hanging (In-Line)	14 AWG	16 AWG	Tin	Crimp	0.9 "	22.86 mm	Blue							7.37 mm	0.29 in	0.34 in	8.64 mm
3M Electronic Specialty MVU14-8R/SK	Vinyl					Copper ETP	Insulated		Circular	8 Stud	Free Hanging (In-Line)	14 AWG	16 AWG	Tin	Crimp	0.8 "	20.32 mm	Blue											0.76 mm	0.03 in	6.35 mm	0.25 "
3M Electronic Specialty MVU14-10FBK	Vinyl	6.35 mm	0.25 "	11.43 mm	0.45 in	Copper ETP	Insulated	Butted Seam	Standard	10 Stud	Free Hanging (In-Line)	14 AWG	16 AWG	Tin	Crimp	0.85 in	21.59 mm	Blue
3M Electronic Specialty MVU14-6FB/SX-BOTTLE	Vinyl	6.35 mm	0.25 "	11.43 mm	0.45 in	Copper ETP	Insulated	Butted Seam	Standard	6 Stud	Free Hanging (In-Line)	14 AWG	16 AWG	Tin	Crimp	0.85 in	21.59 mm	Blue													6.35 mm	0.25 "

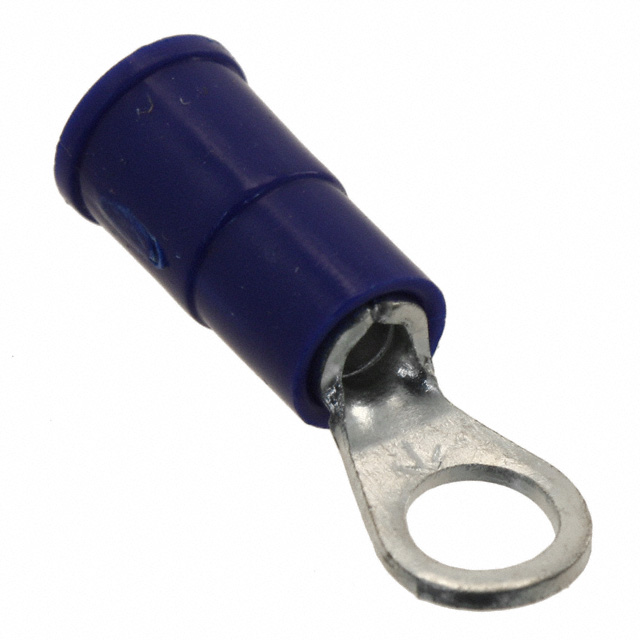

3M Electronic Specialty MVU14-8R/SX-BOTTLE	Vinyl					Copper ETP	Insulated		Circular	8 Stud	Free Hanging (In-Line)	14 AWG	16 AWG	Tin	Crimp	0.8 "	20.32 mm	Blue											0.76 mm	0.03 in	6.35 mm	0.25 "
3M Electronic Specialty MVU14-250DFX						Brass	Non-Mating End Insulated	Butted Seam	Standard		Free Hanging (In-Line)	14 AWG	16 AWG	Tin	Crimp	0.87 in	22.1 mm	Blue		Female	0.81 mm	0.032 in	6.35 mm	0.25 in									0.145 in	3.68 mm
3M Electronic Specialty MVU14-250DFK						Brass	Non-Mating End Insulated	Butted Seam	Standard		Free Hanging (In-Line)	14 AWG	16 AWG	Tin	Crimp	0.87 in	22.1 mm	Blue		Female	0.81 mm	0.032 in	6.35 mm	0.25 in									0.145 in	3.68 mm
