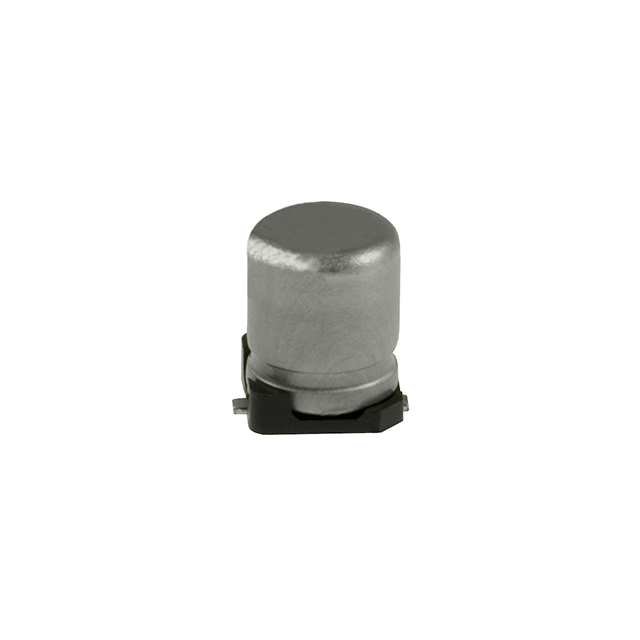

MHS Series

Manufacturer: Chemi-Con

Catalog

CAP ALUMINUM LYTIC 240UF 80V 20% (12.5 X 16MM) SMD 0.13 OHM 1.03A 5000H 125°C T/R AUTOMOTIVE AEC-Q200

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ High Frequency	Applications	Ripple Current @ Low Frequency	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Polarization	Voltage - Rated	Package / Case	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Capacitance	Lifetime @ Temp.	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Chemi-Con EMHS800ARA241MKG5S	0.65 in	16.5 mm	1.03 A	Automotive	515 mA	AEC-Q200	125 °C	-40 C	20 %	Polar	80 V	Radial Can - SMD	13.7 mm	13 mm	0.512 in	0.539 "	Surface Mount	0.492 in	12.5 mm	130 mOhm	240 µF	5000 Hrs
Chemi-Con EMHS160ARA681MHA0G			620 mA	Automotive	372 mA	AEC-Q200	125 °C	-40 C	20 %	Polar	16 V	Radial Can - SMD	8.3 mm	8.3 mm	0.327 in	0.327 in	Surface Mount	0.315 in	8 mm	190 mOhm	680 µF	2000 Hrs	0.413 "	10.5 mm
Chemi-Con EMHS500ARA102MLN0S			2.23 A	Automotive High Temperature Reflow	1.338 A	AEC-Q200	125 °C	-40 C	20 %	Polar	50 VDC	Radial Can - SMD	17 mm	17 mm	0.669 in	0.669 in	Surface Mount	0.63 in	16 mm	56 mOhm	1000 µF	5000 Hrs	0.846 "	21.5 mm
Chemi-Con EMHS160ARA102MJA0G			780 mA	Automotive	468 mA	AEC-Q200	125 °C	-40 C	20 %	Polar	16 V	Radial Can - SMD	10.3 mm	10.3 mm	0.406 in	0.406 "	Surface Mount	0.394 in	10 mm	130 mOhm	1000 µF	2000 Hrs	0.413 "	10.5 mm
Chemi-Con EMHS350GRA821MKG5S	0.65 in	16.5 mm	1.16 A	Automotive	696 mA	AEC-Q200	125 °C	-40 C	20 %	Polar	35 V	Radial Can - SMD	13.7 mm	13 mm	0.512 in	0.539 "	Surface Mount	0.492 in	12.5 mm	70 mOhm	820 µF	5000 Hrs
Chemi-Con EMHS160ARA622MMN0S			2.57 A	Automotive High Temperature Reflow	2.1845 A	AEC-Q200	125 °C	-40 C	20 %	Polar	16 V	Radial Can - SMD	19 mm	19 mm	0.748 in	0.748 in	Surface Mount	0.709 in	18 mm	36 mOhm	6.2 mF	5000 Hrs	0.846 "	21.5 mm
