Shielded Mini-Con-X Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K
STANDARD CIRCULAR CONNECTOR SF MINI PANEL 18 #26 PIN SOLDER
| Part | Mounting Type | Primary Material | Shielding | Contact Finish - Mating | Fastening Type | Number of Positions | Orientation | Insert Material | Shell Material | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Feature | Color | Ingress Protection | Shell Finish | Contact Material | Termination | Applications | Features | Current Rating (Amps) | Cable Opening | Cable Opening | Backshell Material, Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Panel Mount | Metal | Shielded | Gold | Threaded | 18 | Keyed | Polyester Resin | Copper Alloy | Receptacle Male Pins | 120 °C | -40 C | Bulkhead - Front Side Nut | Silver | IP66 IP68 | Nickel | Copper Alloy | |||||||

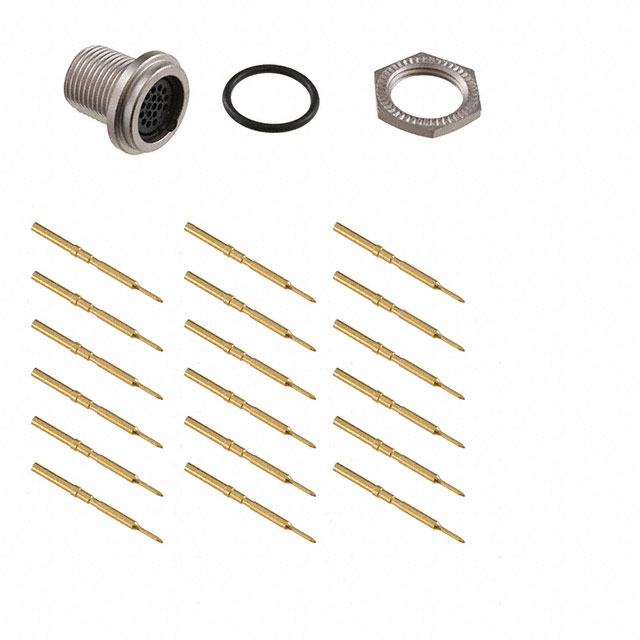

 SWITCHCRAFT/CONXALL | Panel Mount | Metal | Shielded | Gold | Threaded | 18 | Keyed | Polyester Resin | Copper Alloy | Receptacle Male Pins | 120 °C | -40 C | Bulkhead - Front Side Nut | Silver | IP66 IP68 | Nickel | Copper Alloy | Crimp | ||||||

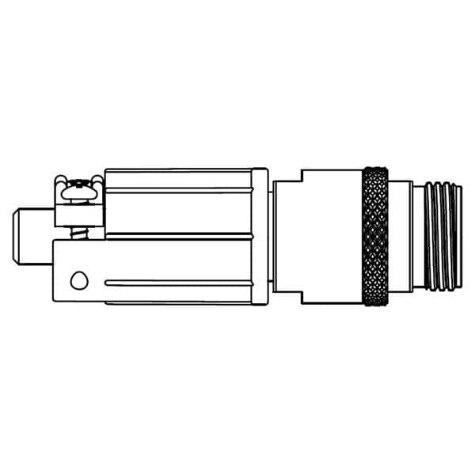

 SWITCHCRAFT/CONXALL | Free Hanging (In-Line) | Metal | Shielded | Gold | Threaded | 2 | Keyed | Polybutylene Terephthalate (PBT) | Brass | Receptacle Female Sockets | 85 °C | -40 C | Black Silver | IP66 IP68 | Nickel | Copper Alloy | Lighting Medical | Backshell Cable Clamp | 13 A | 5.6 mm | 0.22 in | Nylon Polyamide (PA) | ||

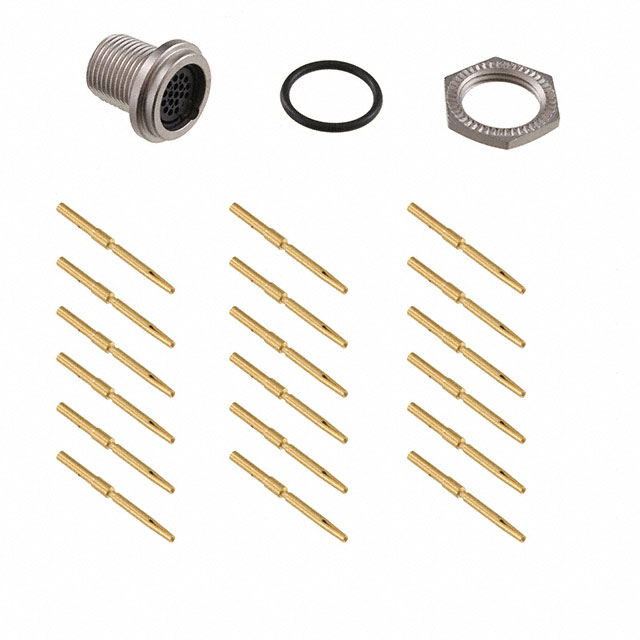

 SWITCHCRAFT/CONXALL | Panel Mount | Metal | Shielded | Gold | Threaded | 18 | Keyed | Polyester Resin | Copper Alloy | Receptacle Female Sockets | 120 °C | -40 C | Bulkhead - Front Side Nut | Silver | IP66 IP68 | Nickel | Copper Alloy | Crimp | ||||||
SWITCHCRAFT/CONXALL | Panel Mount Through Hole | Metal | Shielded | Gold | Threaded | 18 | Keyed | Polyester Resin | Copper Alloy | Receptacle Male Pins | 120 °C | -40 C | Bulkhead - Front Side Nut | Silver | IP66 IP68 | Nickel | Copper Alloy | Solder | ||||||
 SWITCHCRAFT/CONXALL | Panel Mount Through Hole | Metal | Shielded | Gold | Threaded | 18 | Keyed | Polyester Resin | Copper Alloy | Receptacle Female Sockets | 120 °C | -40 C | Bulkhead - Front Side Nut | Silver | IP66 IP68 | Nickel | Copper Alloy | Solder | ||||||
 SWITCHCRAFT/CONXALL | Free Hanging (In-Line) | Metal | Shielded | Gold | Threaded | 18 | Keyed | Thermoplastic | Copper Alloy | Plug Male Pins | 120 °C | -40 C | Black Silver | IP66 IP68 | Nickel | Copper Alloy | Backshell Cable Clamp Coupling Nut | 8.38 mm | 0.33 in | Thermoplastic | ||||

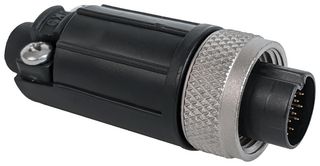

 SWITCHCRAFT/CONXALL | Free Hanging (In-Line) | Metal | Shielded | Gold | Threaded | 15 | Keyed | Thermoplastic | Copper Alloy | Plug Male Pins | 120 °C | -40 C | Black Silver | IP66 IP68 | Nickel | Copper Alloy | Lighting Medical | Backshell Cable Clamp Coupling Nut | 8.38 mm | 0.33 in | Thermoplastic | |||

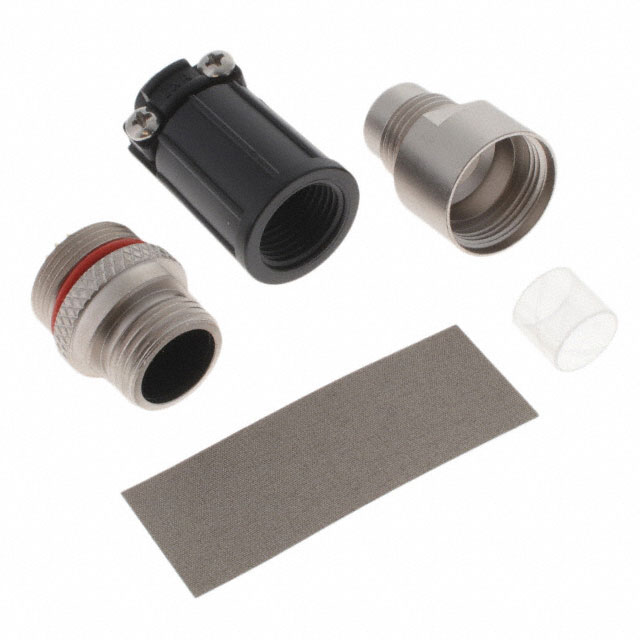

 SWITCHCRAFT/CONXALL | Free Hanging (In-Line) | Metal | Shielded | Gold | Threaded | 18 | Keyed | Polybutylene Terephthalate (PBT) | Brass | Receptacle Male Pins | 120 °C | -40 C | Black Silver | IP66 IP68 | Nickel | Copper Alloy | Backshell Cable Clamp | 8.38 mm | 0.33 in | Nylon Polyamide (PA) | ||||
SWITCHCRAFT/CONXALL | Panel Mount Through Hole | Metal | Shielded | Gold | Threaded | 12 | Keyed | Polyester Resin | Copper Alloy | Receptacle Female Sockets | 120 °C | -40 C | Bulkhead - Front Side Nut | Silver | IP66 IP68 | Nickel | Copper Alloy | Solder | Lighting Medical |
