9301 Series

Catalog

RELAY REED SPST 500MA 12V

Part	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Termination Style	Must Release Voltage	Must Operate Voltage	Mounting Type	Coil Type	Contact Form	Coil Current	Contact Rating (Current)	Switching Voltage [Max]	Release Time	Operate Time
COTO TECHNOLOGY 9301-12-20	1 kOhms	85 °C	-20 ░C	12 VDC	J Lead	1 VDC	9 VDC	Surface Mount	Non Latching	SPST-NO (1 Form A)	12 mA	0.5 A	200 VDC 200 VAC	0.1 ms	0.4 ms

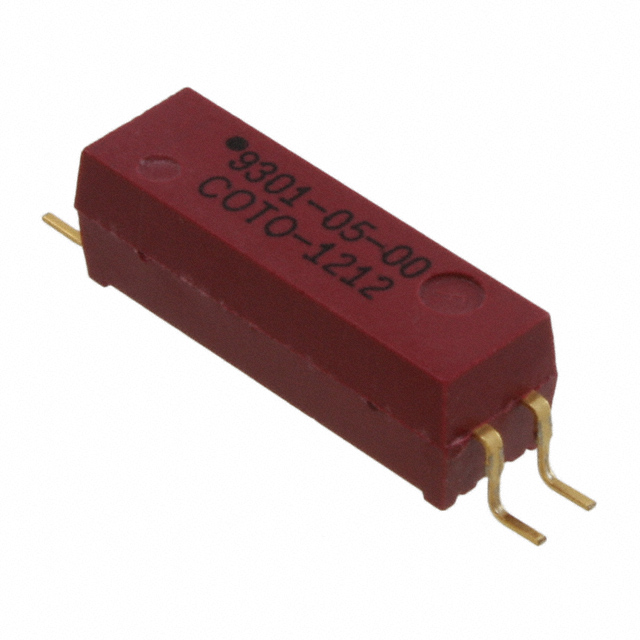

COTO TECHNOLOGY 9301-05-00	350 Ohms	85 °C	-20 ░C	5 VDC	Gull Wing	0.4 VDC	3.75 VDC	Surface Mount	Non Latching	SPST-NO (1 Form A)	14.3 mA	0.5 A	200 VDC 200 VAC	0.1 ms	0.4 ms

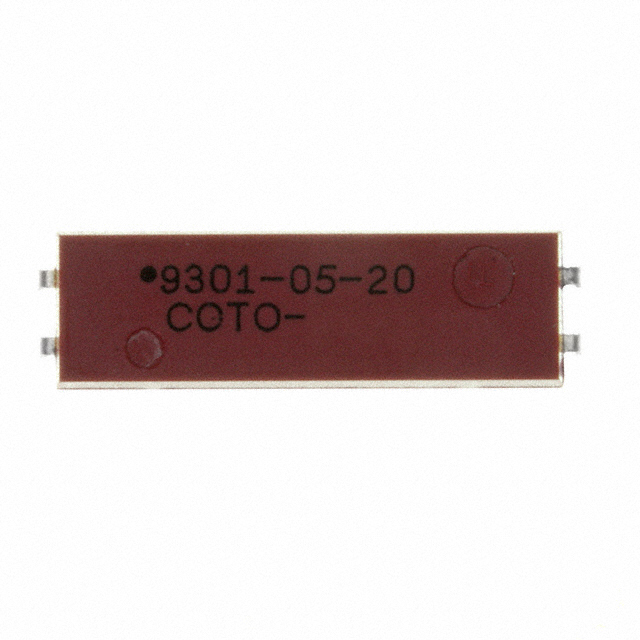

COTO TECHNOLOGY 9301-05-20	350 Ohms	85 °C	-20 ░C	5 VDC	J Lead	0.4 VDC	3.75 VDC	Surface Mount	Non Latching	SPST-NO (1 Form A)	14.3 mA	0.5 A	200 VDC 200 VAC	0.1 ms	0.4 ms
