7C Series

Catalog

STANDARD CLOCK OSCILLATORS 6.144MHZ 3.3V 50PPM -10C +70C

Part	Package / Case	Mounting Type	Type	Function	Base Resonator [custom]	Frequency Stability	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Supply	Output	Current - Supply (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Frequency	Operating Temperature [Max]	Operating Temperature [Min]

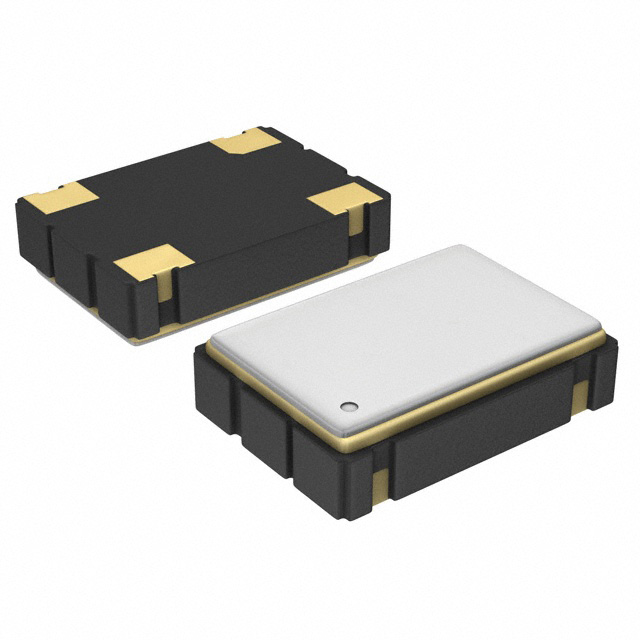

TXC CORPORATION 7C-6.144MBB-T	4-SMD No Lead	Surface Mount	XO (Standard)	Enable/Disable	Crystal	50 ppm	0.055 in	1.4 mm	3.3 V	CMOS	30 mA	3.2 mm	0.126 in	5 mm	0.197 in	6.144 MHz	70 °C	-10 °C
TXC CORPORATION 7C-12.000MBA-T	4-SMD No Lead	Surface Mount	XO (Standard)	Enable/Disable	Crystal	25 ppm	0.055 in	1.4 mm	3.3 V	CMOS	30 mA	3.2 mm	0.126 in	5 mm	0.197 in	12 MHz	70 °C	-10 °C
TXC CORPORATION 7C-27.000MBC-T	4-SMD No Lead	Surface Mount	XO (Standard)	Enable/Disable	Crystal	100 ppm	0.055 in	1.4 mm	3.3 V	CMOS	30 mA	3.2 mm	0.126 in	5 mm	0.197 in	27 MHz	70 °C	-10 °C
TXC CORPORATION 7C-48.000MBB-T	4-SMD No Lead	Surface Mount	XO (Standard)	Enable/Disable	Crystal	50 ppm	0.055 in	1.4 mm	3.3 V	CMOS	30 mA	3.2 mm	0.126 in	5 mm	0.197 in	48 MHz	70 °C	-10 °C
TXC CORPORATION 7C-40.000MBA-T	4-SMD No Lead	Surface Mount	XO (Standard)	Enable/Disable	Crystal	25 ppm	0.055 in	1.4 mm	3.3 V	CMOS	30 mA	3.2 mm	0.126 in	5 mm	0.197 in	40 MHz	70 °C	-10 °C
TXC CORPORATION 7C-40.000MBC-T	4-SMD No Lead	Surface Mount	XO (Standard)	Enable/Disable	Crystal	100 ppm	0.055 in	1.4 mm	3.3 V	CMOS	30 mA	3.2 mm	0.126 in	5 mm	0.197 in	40 MHz	70 °C	-10 °C
TXC CORPORATION 7C-24.000MBC-T	4-SMD No Lead	Surface Mount	XO (Standard)	Enable/Disable	Crystal	100 ppm	0.055 in	1.4 mm	3.3 V	CMOS	30 mA	3.2 mm	0.126 in	5 mm	0.197 in	24 MHz	70 °C	-10 °C
TXC CORPORATION 7C-48.000MDB-T	4-SMD No Lead	Surface Mount	XO (Standard)	Enable/Disable	Crystal	50 ppm	0.055 in	1.4 mm	1.8 V	CMOS	20 mA	3.2 mm	0.126 in	5 mm	0.197 in	48 MHz	70 °C	-10 °C
TXC CORPORATION 7C-16.000MBB-T	4-SMD No Lead	Surface Mount	XO (Standard)	Enable/Disable	Crystal	50 ppm	0.055 in	1.4 mm	3.3 V	CMOS	30 mA	3.2 mm	0.126 in	5 mm	0.197 in	16 MHz	70 °C	-10 °C
