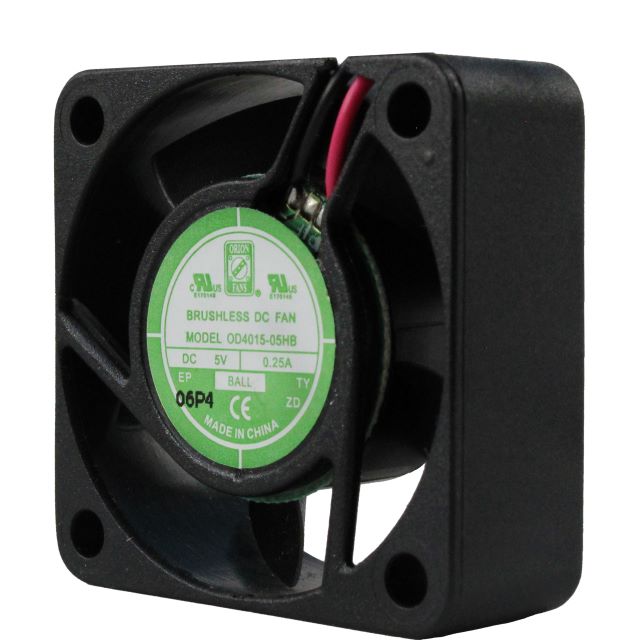

OD4015 Series
Manufacturer: ORION FANS
Beta
⌘K
FAN AXIAL 40X15MM 24VDC WIRE
| Part | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Current Rating (Amps) | Material - Frame | Material - Blade | Width [y] | Noise | Power (Watts) | Bearing Type | RPM | Weight | Weight | Approval Agency | Air Flow | Air Flow | Operating Temperature [Max] | Operating Temperature [Min] | Features | Fan Type | Voltage - Rated | Size / Dimension [x] | Size / Dimension [z] | Static Pressure | Static Pressure | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | 17 VDC | 26.4 VDC | 70000 Hrs | 60 mA | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 15 mm | 29 dB(A) | 1.92 W | Ball | 6000 RPM | 24.04 g | 0.053 lb | CE cURus | 0.19 m³/min | 6.8 CFM | 70 °C | -10 °C | Speed Sensor (Tach) | Tubeaxial | 24 VDC | 40 mm | 40 mm | 39.8 Pa | 0.16 in H2O | 3 Wire Leads |
ORION FANS | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 15 mm | Ball | CE cURus | PWM Control | Tubeaxial | 12 VDC | 40 mm | 40 mm | 3 Wire Leads | |||||||||||||||
 ORION FANS | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 15 mm | Sleeve | CE cURus | Tubeaxial | 24 VDC | 40 mm | 40 mm | 2 Wire Leads | ||||||||||||||||
ORION FANS | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 15 mm | Sealed Sleeve | CE cURus | Tubeaxial | 12 VDC | 40 mm | 40 mm | 2 Wire Leads | ||||||||||||||||
ORION FANS | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 15 mm | Sleeve | CE cURus | Tubeaxial | 12 VDC | 40 mm | 40 mm | 2 Wire Leads | ||||||||||||||||
ORION FANS | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 15 mm | Ball | CE cURus | Tubeaxial | 12 VDC | 40 mm | 40 mm | 2 Wire Leads | ||||||||||||||||
ORION FANS | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 15 mm | Sealed Sleeve | CE cURus | Speed Sensor (Tach) | Tubeaxial | 24 VDC | 40 mm | 40 mm | 3 Wire Leads | |||||||||||||||
 ORION FANS | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 15 mm | Ball | CE cURus | PWM Control Speed Sensor (Tach) | Tubeaxial | 12 VDC | 40 mm | 40 mm | 4 Wire Leads | |||||||||||||||
ORION FANS | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 15 mm | Sealed Sleeve | CE cURus | Locked Rotor Sensor | Tubeaxial | 12 VDC | 40 mm | 40 mm | 3 Wire Leads | |||||||||||||||
ORION FANS | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) Fiberglass Reinforced | 15 mm | Ball | CE cURus | Speed Sensor (Tach) | Tubeaxial | 12 VDC | 40 mm | 40 mm | 3 Wire Leads |
