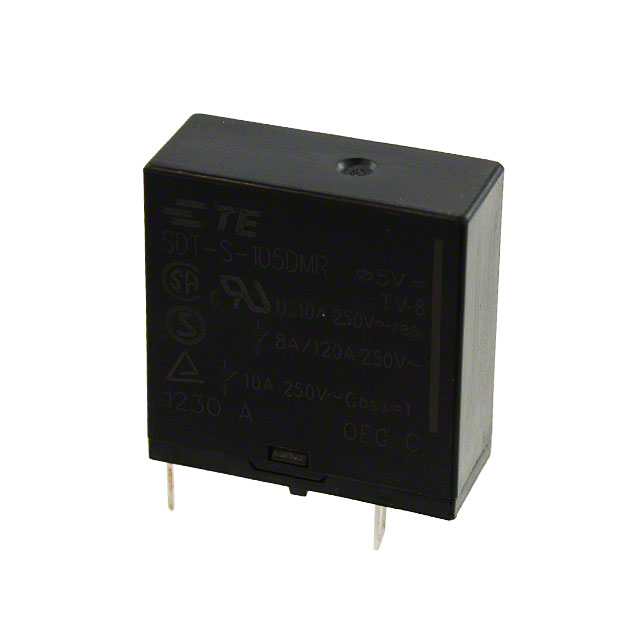

SDT-S-1 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
POWER RELAY, SPST-NO, 12 VDC, 10 A, SDT-R SERIES, THROUGH HOLE, NON LATCHING
| Part | Contact Rating (Current) | Termination Style | Mounting Type | Operate Time | Switching Voltage | Coil Type | Seal Rating | Relay Type | Coil Insulation | Release Time | Operating Temperature [Min] | Operating Temperature [Max] | Load - Max Switching | Contact Material | Contact Form | Approval Agency | Coil Resistance | Coil Voltage | Must Release Voltage | Switching Voltage [Max] | Must Operate Voltage | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 10 A | PC Pin | Through Hole | 15 ms | 24 VDC 250 VAC | Non Latching | Sealed - Flux Protection | General Purpose | Class E | 8 ms | -30 ░C | 60 °C | 240 W 2500 VA | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | CSA SEMKO SEV TUV UL | ||||||
 TE Connectivity AMP Connectors | 5 A | PC Pin | Through Hole | 15 ms | Non Latching | General Purpose | Class E | 5 ms | -30 ░C | 70 °C | 150 W 1250 VA | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | CQC cURus TUV VDE | 167 Ohms | 5 VDC | 0.5 VDC | 30 VDC 250 VAC | 3.75 VDC | 0.03 A | ||
TE Connectivity AMP Connectors | 10 A | PC Pin | Through Hole | 15 ms | Non Latching | General Purpose | Class E | 5 ms | -30 ░C | 70 °C | 300 W 2500 VA | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | CQC cURus TUV VDE | 150 Ohms | 9 VDC | 0.9 VDC | 30 VDC 250 VAC | 6.75 VDC | 0.06 A | ||
TE Connectivity AMP Connectors | 10 A | PC Pin | Through Hole | 15 ms | Non Latching | General Purpose | Class E | 5 ms | -30 ░C | 70 °C | 300 W 2500 VA | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | CQC cURus TUV VDE | 1.07 kOhms | 24 VDC | 2.4 VDC | 30 VDC 250 VAC | 18 VDC | 22.5 mA | ||
 TE Connectivity AMP Connectors | 10 A | PC Pin | Through Hole | 15 ms | Non Latching | General Purpose | Class E | 5 ms | -30 ░C | 70 °C | 300 W 2500 VA | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | CQC cURus TUV VDE | 16.7 Ohms | 0.3 VDC | 30 VDC 250 VAC | 2.25 VDC | 180 mA | |||
TE Connectivity AMP Connectors | 5 A | PC Pin | Through Hole | 15 ms | Non Latching | General Purpose | Class E | 5 ms | -30 ░C | 70 °C | 150 W 1250 VA | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | CQC cURus TUV VDE | 144 Ohms | 0.6 VDC | 30 VDC 250 VAC | 4.5 VDC | 41.7 mA | |||
TE Connectivity AMP Connectors | 10 A | PC Pin | Through Hole | 15 ms | Non Latching | General Purpose | Class E | 5 ms | -30 ░C | 70 °C | 300 W 2500 VA | Silver Nickel (AgNi) | SPST-NO (1 Form A) | CSA SEMKO SEV TUV UL | 1.067 kOhms | 24 VDC | 2.4 VDC | 30 VDC 250 VAC | 18 VDC | 22.5 mA | ||
 TE Connectivity AMP Connectors | 10 A | PC Pin | Through Hole | 15 ms | Non Latching | General Purpose | Class E | 5 ms | -30 ░C | 70 °C | 300 W 2500 VA | Silver Nickel (AgNi) | SPST-NO (1 Form A) | CSA SEMKO SEV TUV UL | 100 Ohms | 5 VDC | 0.5 VDC | 30 VDC 250 VAC | 3.75 VDC | 50 mA | ||
TE Connectivity AMP Connectors | 10 A | PC Pin | Through Hole | 15 ms | Non Latching | General Purpose | Class E | 5 ms | -30 ░C | 70 °C | 300 W 2500 VA | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | CQC cURus TUV VDE | 4.3 kOhms | 48 VDC | 4.8 VDC | 30 VDC 250 VAC | 36 VDC | 11.3 mA | ||
TE Connectivity AMP Connectors | 5 A | PC Pin | Through Hole | 15 ms | Non Latching | General Purpose | Class E | 5 ms | -30 ░C | 70 °C | 150 W 1250 VA | Silver Tin Oxide (AgSnO) | SPST-NO (1 Form A) | CQC cURus TUV VDE | 960 Ohms | 12 VDC | 1.2 VDC | 30 VDC 250 VAC | 9 VDC |
