PJRA Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

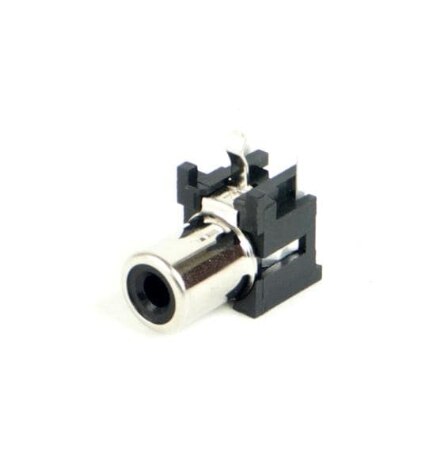

RCA PHONO CONNECTORS 1 POS RA PH JK YEL G
| Part | Voltage - Rated | Body Color | Contact Material - Plating | Contact Material | Body Material | Current Rating (Amps) | Housing Material | Termination | Signal Lines | Industry Recognized Mating Diameter [diameter] | Shielding | Internal Switch(s) | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Insulation Color | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Gender | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Internal Switch(s) | Features | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 34 VAC/DC | Gold Yellow | Gold | Copper Alloy | Copper Alloy | 2 A | Acrylonitrile Butadiene Styrene (ABS) | Solder | Mono | 3.2 mm 9 mm | Unshielded | Single Switch | 2 | 3 | Yellow | Right Angle Through Hole | 85 °C | -25 °C | Phono (RCA) Jack | Female | 8.33 mm | 3.4 mm | 0.134 in | 0.328 in | ||||
 SWITCHCRAFT/CONXALL | 34 VAC/DC | Silver Yellow | Tin | Copper Alloy | Copper Alloy | 2 A | Acrylonitrile Butadiene Styrene (ABS) | Solder | Mono | 3.2 mm 9 mm | Shielded | 6 | Red White Yellow | Right Angle Through Hole | 85 °C | -25 °C | Phono (RCA) Jack | Female | Grounding Tab | 3 Sets of 2 Conductors | ||||||||
SWITCHCRAFT/CONXALL | 34 VAC/DC | Black Silver | Tin | Copper Alloy | Copper Alloy | 2 A | Acrylonitrile Butadiene Styrene (ABS) | Solder | Mono | 3.2 mm 9 mm | Shielded | 5 | Red White Yellow | Right Angle Through Hole | 85 °C | -25 °C | Phono (RCA) Jack | Female | Grounding Tab | 3 |
