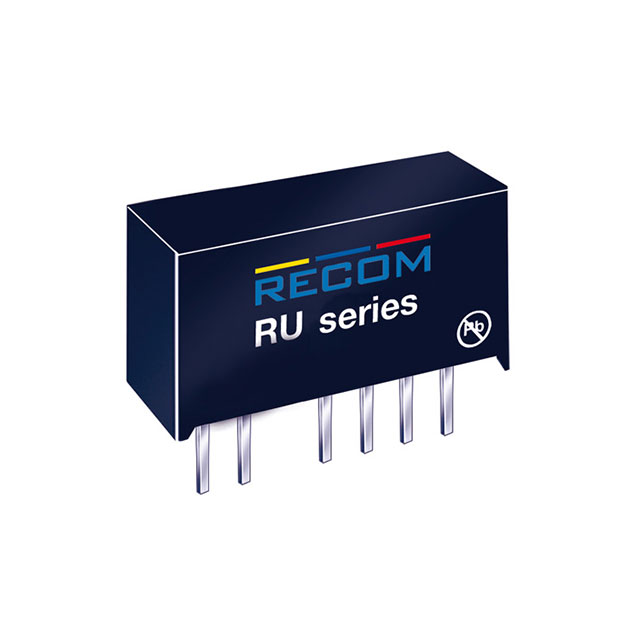

RU Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W DC/DC 2KV UNREG 5VIN 5VOUT

Part	Package / Case	Mounting Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Voltage - Input (Min) [Min]	Voltage - Output 2	Features	Voltage - Input (Max) [Max]	Number of Outputs	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Current - Output (Max)	Current - Output (Max)	Applications

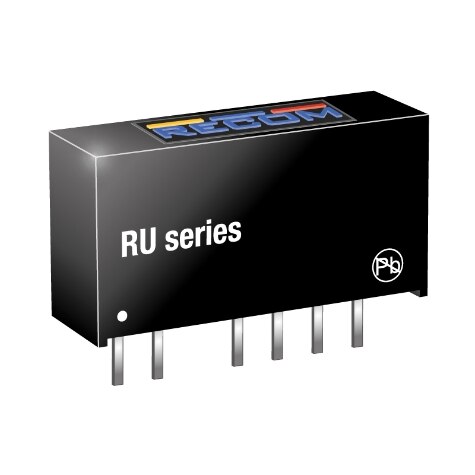

Recom Power RU-050505/HP	6 Leads 7-SIP Module	Through Hole	Isolated Module	85 °C	-40 C	5 V	4.5 V	5 V	SCP	5.5 V	2	72 %	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm	2000 V	100 mA	100 mA	ITE (Commercial)
Recom Power RU-050505/H	6 Leads 7-SIP Module	Through Hole	Isolated Module	85 °C	-40 C	5 V	4.5 V	5 V	SCP	5.5 V	2	72 %	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm	2000 V	100 mA	100 mA	ITE (Commercial)
Recom Power RU-050505/P	6 Leads 7-SIP Module	Through Hole	Isolated Module	85 °C	-40 C	5 V	4.5 V	5 V	SCP	5.5 V	2	72 %	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm	1000 V	100 mA	100 mA	ITE (Commercial)
Recom Power RU-3.30505	6 Leads 7-SIP Module	Through Hole	Isolated Module	85 °C	-40 C	5 V	3 V	5 V	SCP	3.6 V	2	76 %	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm	1000 V	100 mA	100 mA	ITE (Commercial)
Recom Power RU-3.30505/P	6 Leads 7-SIP Module	Through Hole	Isolated Module	85 °C	-40 C	5 V	3 V	5 V	SCP	3.6 V	2	76 %	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm	1000 V	100 mA	100 mA	ITE (Commercial)
Recom Power RU-3.30505/HP	6 Leads 7-SIP Module	Through Hole	Isolated Module	85 °C	-40 C	5 V	3 V	5 V	SCP	3.6 V	2	76 %	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm	2000 V	100 mA	100 mA	ITE (Commercial)
Recom Power RU-3.30505/H	6 Leads 7-SIP Module	Through Hole	Isolated Module	85 °C	-40 C	5 V	3 V	5 V	SCP	3.6 V	2	76 %	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm	2000 V	100 mA	100 mA	ITE (Commercial)
Recom Power RU-050505	6 Leads 7-SIP Module	Through Hole	Isolated Module	85 °C	-40 C	5 V	4.5 V	5 V	SCP	5.5 V	2	72 %	0.24 "	0.4 "	19.7 mm	10.2 mm	0.77 in	6 mm	1000 V	100 mA	100 mA	ITE (Commercial)
