HMCAD1511 Series

Catalog

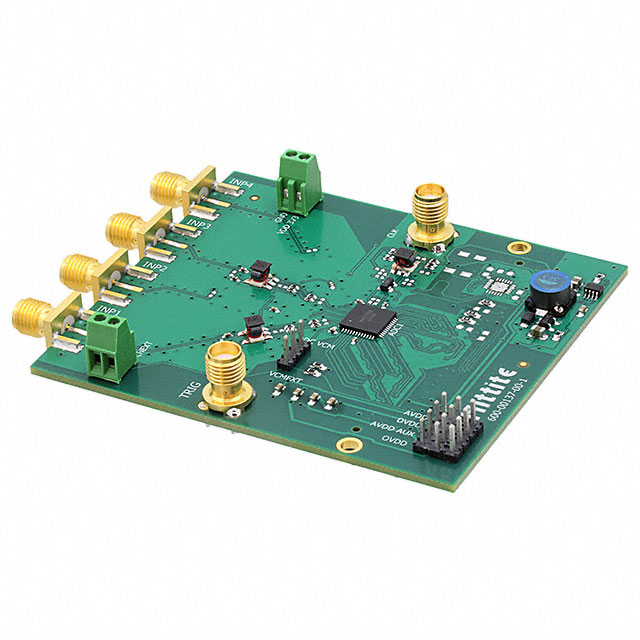

EVAL BOARD HMCAD1511

Part	Supplied Contents	Power (Typ) @ Conditions	Number of A/D Converters	Utilized IC / Part	Number of Bits	Sampling Rate (Per Second)	Contents	Data Interface	Input Range	Input Type	Reference Type	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Mounting Type	Supplier Device Package	Architecture	Features	Ratio - S/H:ADC	Sampling Rate (Per Second)	Configuration	Number of Inputs [custom]	Package / Case	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Operating Temperature [Max]	Operating Temperature [Min]
Analog Devices Inc./Maxim Integrated EVAL01-HMCAD1511	Board(s)	710 mW	4	HMCAD1511	8	1G	Board(s)	LVDS Serial SPI	2 Vpp
Analog Devices Inc./Maxim Integrated HMCAD1511TR			4		8			LVDS - Serial		Differential	Internal	2 V	1.7 V	Surface Mount	48-QFN (7x7)	Pipelined	Simultaneous Sampling	1:1	1 G 250 M 500 M	S/H-ADC	4	48-VFQFN Exposed Pad	2 V	1.7 V	85 °C	-40 C
Analog Devices Inc./Maxim Integrated HMCAD1511			4		8			LVDS - Serial		Differential	Internal	2 V	1.7 V	Surface Mount	48-QFN (7x7)	Pipelined	Simultaneous Sampling	1:1	1 G 250 M 500 M	S/H-ADC	4	48-VFQFN Exposed Pad	2 V	1.7 V	85 °C	-40 C
