ATCC Series
Manufacturer: Abracon LLC
Beta
⌘K
CAP TANT SOLID 100UF 4V A CASE 20% (3.2 X 1.6 X 1.6MM) INWARD L SMD 5 OHM 125°C T/R
| Part | Mounting Type | Features | Manufacturer Size Code | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | ESR (Equivalent Series Resistance) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Rated | Tolerance | Type | Package / Case | Capacitance | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

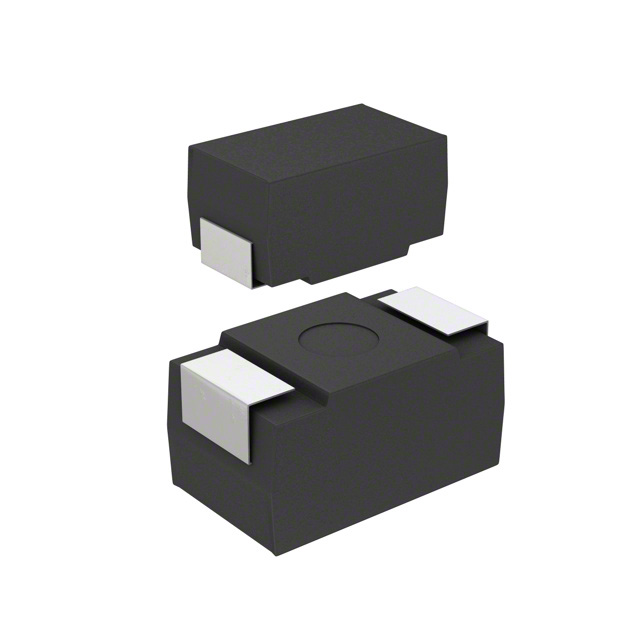

 Abracon LLC | Surface Mount | General Purpose | A | 1.8 mm | 0.071 in | 5 Ohm | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 4 V | 20 % | Molded | 1206 (3216 Metric) | 100 µF | -55 C | 125 °C | |||
 Abracon LLC | Surface Mount | General Purpose | A | 1.8 mm | 0.071 in | 4 Ohm | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 10 V | 20 % | Molded | 1206 (3216 Metric) | 22 µF | -55 C | 125 °C | |||

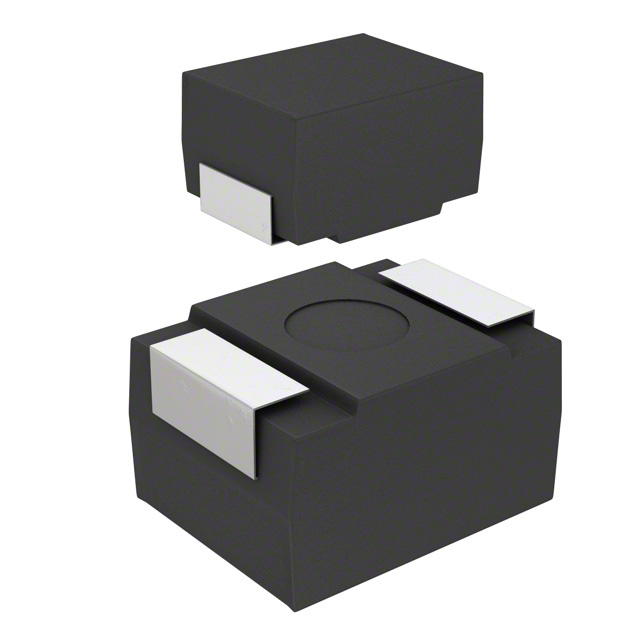

 Abracon LLC | Surface Mount | General Purpose | B | 2 Ohms | 0.11 " | 0.138 in | 3.5 mm | 2.8 mm | 35 V | 20 % | Molded | 1411 | 4.7 µF | -55 C | 125 °C | 2.1 mm | 0.083 in | 3528 Metric |
