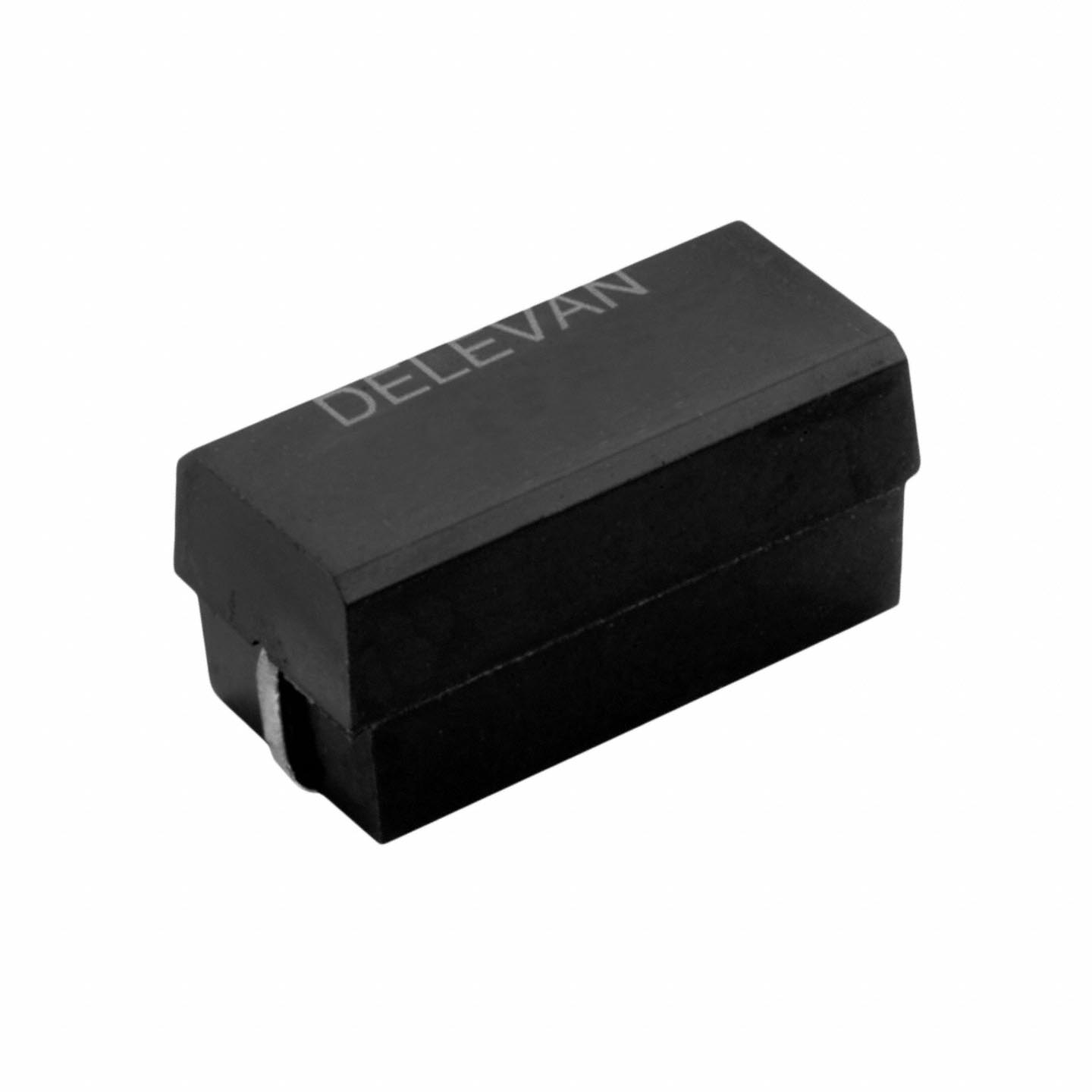

5500R Series

Manufacturer: Delevan

Catalog

POWER INDUCTORS - SMD 8200UH,6.44OHMS 390MA, 5%

Part	DC Resistance (DCR) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Tolerance	Package / Case	Current Rating (Amps)	Current - Saturation (Isat)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Shielding	Inductance Frequency - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material - Core
Delevan 5500R-825J	6.44 Ohm	Surface Mount	130 °C	-55 C	8.2 mH	5 %	2-SMD	390 mA	190 mA	13.21 mm	0.52 "	Unshielded	1 kHz	1.08 in	12.96 mm	27.44 mm	0.51 in	Ferrite
Delevan 5500R-826K	67.3 Ohm	Surface Mount	130 °C	-55 C	82 mH	10 %	Nonstandard	120 mA	60 mA	13.21 mm	0.52 "	Unshielded	1 kHz	1.05 "	12.57 mm	26.67 mm	0.495 "	Ferrite
Delevan 5500R-104J	84 mOhm	Surface Mount	130 °C	-55 C	100 µH	5 %	2-SMD	3.44 A	1.76 A	13.21 mm	0.52 "	Unshielded	1 kHz	1.08 in	12.96 mm	27.44 mm	0.51 in	Ferrite
Delevan 5500R-156K	10.7 Ohm	Surface Mount	130 °C	-55 C	15 mH	10 %	Nonstandard	0.3 A	140 mA	13.21 mm	0.52 "	Unshielded	1 kHz	1.05 "	12.57 mm	26.67 mm	0.495 "	Ferrite
Delevan 5500R-273J	25 mOhm	Surface Mount	130 °C	-55 C	27 µH	5 %	2-SMD	6.3 A	3.38 A	13.21 mm	0.52 "	Unshielded	1 kHz	1.08 in	12.96 mm	27.44 mm	0.51 in	Ferrite
