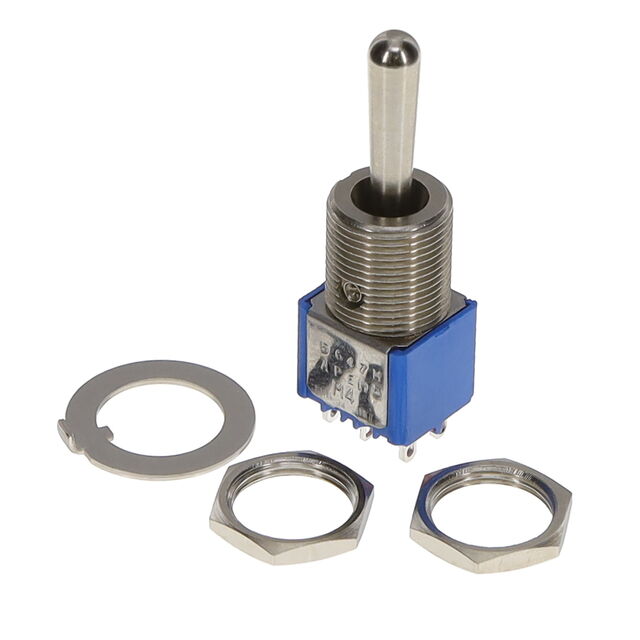

5647M Series
Manufacturer: APEM Inc.
Beta
⌘K
SWITCH TOGGLE DPDT 6A 125V
| Part | Actuator Material | Electrical Life | Features | Voltage Rating - DC | Switch Function | Circuit | Actuator Length [x] | Actuator Type | Bushing Thread | Current Rating (Amps) | Mounting Type | Voltage Rating - AC | Illumination | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 APEM Inc. | Brass Nickel Plated | 50000 Cycles | Front Panel Sealing | 30 V | Mom-Off-Mom | DPDT | 17.5 mm | Standard Round | 15/32-32 | 4 A 6 A | Panel Mount | 125 V | Non-Illuminated | 85 °C | -40 C | Solder Lug | 12.5 mm |
 APEM Inc. | Brass Nickel Plated | 50000 Cycles | Epoxy Sealed Terminals | 30 V | Mom-Off-Mom | DPDT | 17.5 mm | Standard Round | 15/32-32 | 4 A 6 A | Panel Mount | 125 V | Non-Illuminated | 85 °C | -40 C | Solder Lug | 12.5 mm |
