FZ900R12 Series
Manufacturer: INFINEON
Beta
⌘K

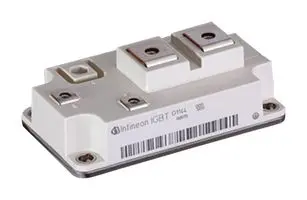

THE FZ900R12KE4 IS A SINGLE SWITCH IGBT4 - E4 MODULE IN A 62 MM HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 900 A.
| Part | Configuration | Vce(on) (Max) @ Vge, Ic | Voltage - Collector Emitter Breakdown (Max) [Max] | Input | Supplier Device Package | Input Capacitance (Cies) @ Vce | Current - Collector (Ic) (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | IGBT Type | Package / Case | Current - Collector Cutoff (Max) [Max] | Power - Max [Max] | NTC Thermistor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | Single | 2.1 V | 1200 V | Standard | Module | 56 nF | 900 A | -40 °C | 150 °C | Chassis Mount | Trench Field Stop | Module | 5 mA | 4300 W |
