RUMF31 Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K

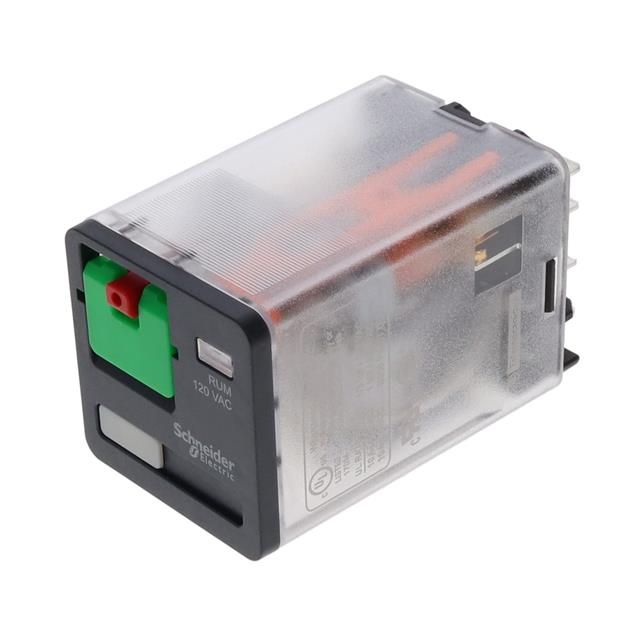

HARMONY, UNIVERSAL PLUG-IN RELAY
| Part | Coil Resistance | Release Time | Contact Rating (Current) | Must Release Voltage | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Features | Mounting Type | Operate Time | Approval Agency | Contact Material | Relay Type | Contact Form | Coil Voltage | Switching Voltage [Max] | Termination Style | Coil Type | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | 120 Ohms | 20 ms | 10 A | 1.2 VDC | 9.6 VDC | 55 °C | -40 C | 0.1 A | Test Button | Socketable | 20 ms | CSA EAC UL | Silver Nickel (AgNi) | General Purpose | 3PDT (3 Form C) | 12 VDC | 28 VDC 250 VAC | Plug In | Non Latching | 280 W 2500 VA |
SCHNEIDER ELECTRIC | 470 Ohms | 20 ms | 10 A | 2.4 VDC | 19.2 VDC | 55 °C | -40 C | 51.1 mA | Test Button | Socketable | 20 ms | CSA EAC UL | Silver Nickel (AgNi) | General Purpose | 3PDT (3 Form C) | 24 VDC | 28 VDC 250 VAC | Plug In | Non Latching | 280 W 2500 VA |
 SCHNEIDER ELECTRIC | 1.7 kOhms | 20 ms | 10 A | 18 VAC | 96 VAC | 55 °C | -40 C | 70.6 mA | Test Button | Socketable | 20 ms | CSA EAC UL | Silver Nickel (AgNi) | General Purpose | 3PDT (3 Form C) | 120 VAC | 28 VDC 250 VAC | Plug In | Non Latching | 280 W 2500 VA |
