AAA Series

Catalog

AAA SERIES, 3 CONTACTS, MALE, METAL HANDLE, BLACK FINISH, SILVER CONTACT PLATING, 0.135"[3.4MM] CABLE STRAIN RELIEF SIZE, SEALED

Part	Shell Material	Shell Finish	Contact Material	Applications	Ingress Protection	Shell Size - Insert	Backshell Material, Plating [custom]	Backshell Material, Plating [custom]	Connector Type	Shielding	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Fastening Type	Features	Insert Material	Orientation	Primary Material	Mounting Type	Number of Positions	Backshell Material, Plating	Current Rating (Amps)	Voltage Rating

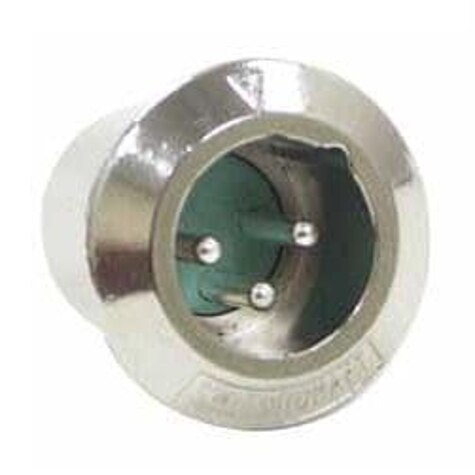

SWITCHCRAFT/CONXALL AAA3MBZH	Zinc Alloy	Chrome	Copper Alloy	Audio Instrumentation	IP66 - Dust Tight Water Resistant	XLR	Chrome	Zinc	Receptacle Male Pins	Shielded	Black	-40 C	65 °C	Silver	0.15 "	7.24 mm	0.285 in	3.81 mm	Latch Lock	Backshell Cable Clamp Ground Strain Relief	Thermoplastic	Keyed	Metal	Free Hanging (In-Line)
SWITCHCRAFT/CONXALL AAA7MPZH	Zinc Alloy	Nickel	Copper Alloy	Audio Instrumentation	IP66 - Dust Tight Water Resistant	XLR			Receptacle Male Pins	Shielded	Silver	-40 C	65 °C	Silver	0.15 "	7.24 mm	0.285 in	3.81 mm	Latch Lock	Backshell Cable Clamp Ground Strain Relief	Thermoplastic	Keyed	Metal	Free Hanging (In-Line)	7	Nickel Zinc Alloy
SWITCHCRAFT/CONXALL AAA7FPZH	Zinc Alloy	Nickel	Copper Alloy	Audio Instrumentation	IP66 - Dust Tight Water Resistant	XLR			Plug Female Sockets	Shielded	Silver	-40 C	65 °C	Silver	0.15 "	7.24 mm	0.285 in	3.81 mm	Latch Lock	Backshell Cable Clamp Ground Strain Relief	Thermoplastic	Keyed	Metal	Free Hanging (In-Line)	7	Nickel Zinc Alloy
SWITCHCRAFT/CONXALL AAA4MPZH	Zinc Alloy	Nickel	Copper Alloy	Audio Instrumentation	IP66 - Dust Tight Water Resistant	XLR			Receptacle Male Pins	Shielded	Silver	-40 C	65 °C	Silver	0.15 "	7.24 mm	0.285 in	3.81 mm	Latch Lock	Backshell Cable Clamp Ground Strain Relief	Thermoplastic	Keyed	Metal	Free Hanging (In-Line)	4	Nickel Zinc Alloy
SWITCHCRAFT/CONXALL AAA7MPZPKG	Zinc Alloy	Nickel	Copper Alloy	Audio Industrial Instrumentation Medical		XLR			Receptacle Male Pins	Shielded	Silver			Silver	0.1 "	5.59 mm	0.22 in	2.54 mm	Latch Lock	Backshell Cable Clamp Ground Strain Relief	Thermoplastic	Keyed	Metal	Free Hanging (In-Line)	7	Nickel Zinc Alloy	5 A	125 VAC
SWITCHCRAFT/CONXALL AAA5FPZ	Zinc Alloy	Nickel	Copper Alloy	Audio Industrial Instrumentation Medical		XLR			Plug Female Sockets	Shielded	Silver			Silver	0.1 "	5.59 mm	0.22 in	2.54 mm	Latch Lock	Backshell Cable Clamp Ground Strain Relief	Thermoplastic	Keyed	Metal	Free Hanging (In-Line)	5	Nickel Zinc Alloy	7.5 A	125 VAC
SWITCHCRAFT/CONXALL AAA5FAUZH	Zinc Alloy	Nickel	Copper Alloy	Audio Instrumentation	IP66 - Dust Tight Water Resistant	XLR			Plug Female Sockets	Shielded	Silver	-40 C	65 °C	Gold	0.15 "	7.24 mm	0.285 in	3.81 mm	Latch Lock	Backshell Cable Clamp Ground Strain Relief	Thermoplastic	Keyed	Metal	Free Hanging (In-Line)	5	Nickel Zinc Alloy
SWITCHCRAFT/CONXALL AAA7FPZPKG	Zinc Alloy	Nickel	Copper Alloy	Audio Industrial Instrumentation Medical		XLR			Plug Female Sockets	Shielded	Silver			Silver	0.1 "	5.59 mm	0.22 in	2.54 mm	Latch Lock	Backshell Cable Clamp Ground Strain Relief	Thermoplastic	Keyed	Metal	Free Hanging (In-Line)	7	Nickel Zinc Alloy	5 A	125 VAC
SWITCHCRAFT/CONXALL AAA6MBZ	Zinc Alloy	Chrome	Copper Alloy	Audio Industrial Instrumentation Medical		XLR	Chrome	Zinc	Receptacle Male Pins	Shielded	Black			Silver	0.1 "	5.59 mm	0.22 in	2.54 mm	Latch Lock	Backshell Cable Clamp Ground Strain Relief	Thermoplastic	Keyed	Metal	Free Hanging (In-Line)	6		7.5 A	125 VAC
SWITCHCRAFT/CONXALL AAA3FBZH	Zinc Alloy	Chrome	Copper Alloy	Audio Instrumentation	IP66 - Dust Tight Water Resistant	XLR	Chrome	Zinc	Plug Female Sockets	Shielded	Black	-40 C	65 °C	Silver	0.15 "	7.24 mm	0.285 in	3.81 mm	Latch Lock	Backshell Cable Clamp Ground Strain Relief	Thermoplastic	Keyed	Metal	Free Hanging (In-Line)
