PSAD36B Series

Catalog

DESKTOP POWER SUPPLY 24V 36 WATT

Part	Voltage - Output	Cord Length	Cord Length	Output Connector [x]	Output Connector [diameter]	Output Connector	Operating Temperature [Max]	Standard Number	No Load Power Consumption	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Form	Region Utilized	Power (Watts)	Approval Agency	Input Connector	Input Type	Polarization	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max) [Max]	Applications
TT Electronics/BI PSAD36BSF-14-B2	24 V	47 in	1.2 m	10 mm	2.1 mm 5.5 mm	Barrel Plug	60 °C	60601-1 60950-1	100 mW	45.4 mm	30.5 mm	98.1 mm	1.2 "	1.79 in	3.86 "	Level VI	Desktop (Class II)	International	36 W	CB CE cULus FCC	IEC 320-C8	Cord (Sold Separately)	Positive Center	264 VAC	90 VAC	1.5 A	ITE (Commercial) Medical

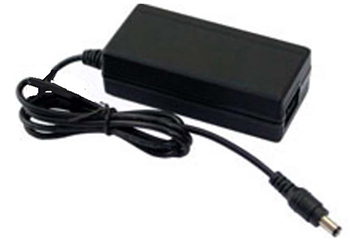

TT Electronics/BI PSAD36BSF-13-B2	15 V	47 in	1.2 m	10 mm	2.5 mm 5.5 mm	Barrel Plug	60 °C	60601-1 60950-1	100 mW	45.4 mm	30.5 mm	98.1 mm	1.2 "	1.79 in	3.86 "	Level VI	Desktop (Class II)	International	36 W	CB CE cULus FCC	IEC 320-C8	Cord (Sold Separately)	Positive Center	264 VAC	90 VAC	2.4 A	ITE (Commercial) Medical

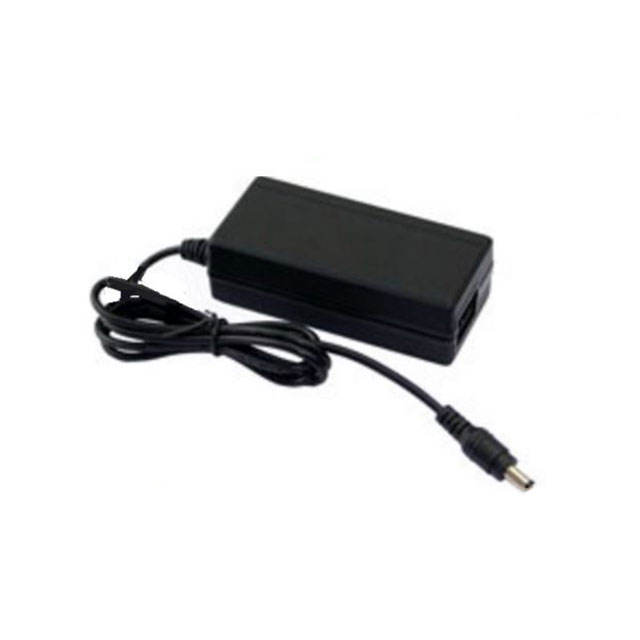

TT Electronics/BI PSAD36BSF-12-B2	12 V	47 in	1.2 m	10 mm	2.5 mm 5.5 mm	Barrel Plug	60 °C	60950-1	100 mW	45.5 mm	30.5 mm	96 mm	1.2 "	1.79 in	3.78 in	Level VI	Desktop (Class I)	International	36 W	CB CE cULus FCC	IEC 320-C14 IEC 320-C8	Cord (Sold Separately)	Positive Center	264 VAC	90 VAC	3 A	ITE (Commercial)
TT Electronics/BI PSAD36BSF-10-B2	5 V	47 in	1.2 m	10 mm	2.1 mm 5.5 mm	Barrel Plug	60 °C	60601-1 60950-1	100 mW	45.4 mm	30.5 mm	98.1 mm	1.2 "	1.79 in	3.86 "	Level VI	Desktop (Class II)	International	20 W	CB CE cULus FCC	IEC 320-C8	Cord (Sold Separately)	Positive Center	264 VAC	90 VAC	4 A	ITE (Commercial) Medical
