ECX-34B Series

Manufacturer: ECS Inc.

Catalog

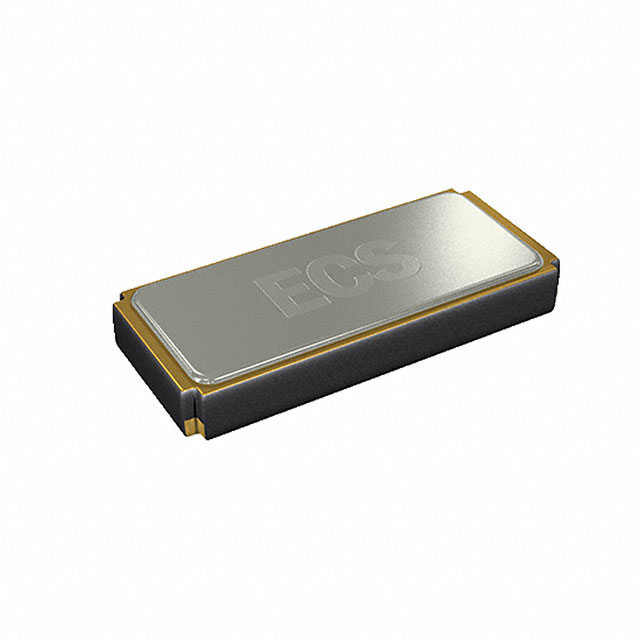

CRYSTAL 32.7680KHZ 7PF SMD

Part	Operating Mode	ESR (Equivalent Series Resistance)	Type	Frequency	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Frequency Tolerance	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Load Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case
ECS Inc. ECS-.327-7-34B-TR	Fundamental	70 kOhms	kHz Crystal (Tuning Fork)	0.032768 MHz	1.5	2-SMD	3.2	20 ppm	Surface Mount	0.035 in	0.9 mm	7 pF	1.5 mm	3.2 mm	0.126 in	0.059 "	85 °C	-40 C	2-SMD No Lead
ECS Inc. ECS-.327-12.5-34B-C-TR	Fundamental	70 kOhms	kHz Crystal (Tuning Fork)	0.032768 MHz	1.5	2-SMD	3.2	10 ppm	Surface Mount	0.035 in	0.9 mm	12.5 pF	1.5 mm	3.2 mm	0.126 in	0.059 "	85 °C	-40 C	2-SMD No Lead
