CSI-RGFI Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

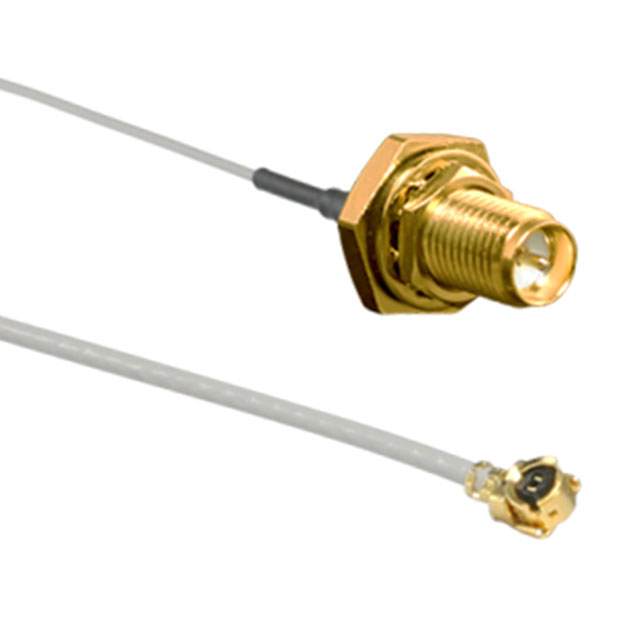

CBL ASSY U.FL-RPSMA JK-PL 3.937"

Part	1st Connector Mounting Feature	1st Contact Gender	2nd Connector	Overall Impedance	Style	1st Connector Mounting Type	1st Connector	Color	2nd Contact Gender	2nd Connector Mounting Type	Frequency - Max [Max]	Cable Type	Cable Type [diameter]	Length	Length
TE Connectivity AMP Connectors CSI-RGFI-100-UFFR-B	Bulkhead - Front Side Nut	Male	U.FL (UMCC) Plug Right Angle	50 Ohms	U.FL (UMCC) to RP-SMA	Panel Mount	RP-SMA Jack	Gray	Female	Free Hanging (In-Line)	3 GHz	Coaxial Cable	1.13 mm	3.937 in	100 mm
TE Connectivity AMP Connectors CSI-RGFI-200-UFFR-B	Bulkhead - Front Side Nut	Male	U.FL (UMCC) Plug Right Angle	50 Ohms	U.FL (UMCC) to RP-SMA	Panel Mount	RP-SMA Jack	Gray	Female	Free Hanging (In-Line)	3 GHz	Coaxial Cable	1.13 mm	7.874 in	200 mm
TE Connectivity AMP Connectors CSI-RGFI-200-UFFR	Bulkhead - Front Side Nut	Male	U.FL (UMCC) Plug Right Angle	50 Ohms	U.FL (UMCC) to RP-SMA	Panel Mount	RP-SMA Jack	Gray	Female	Free Hanging (In-Line)	3 GHz	Coaxial Cable	1.13 mm	7.874 in	200 mm

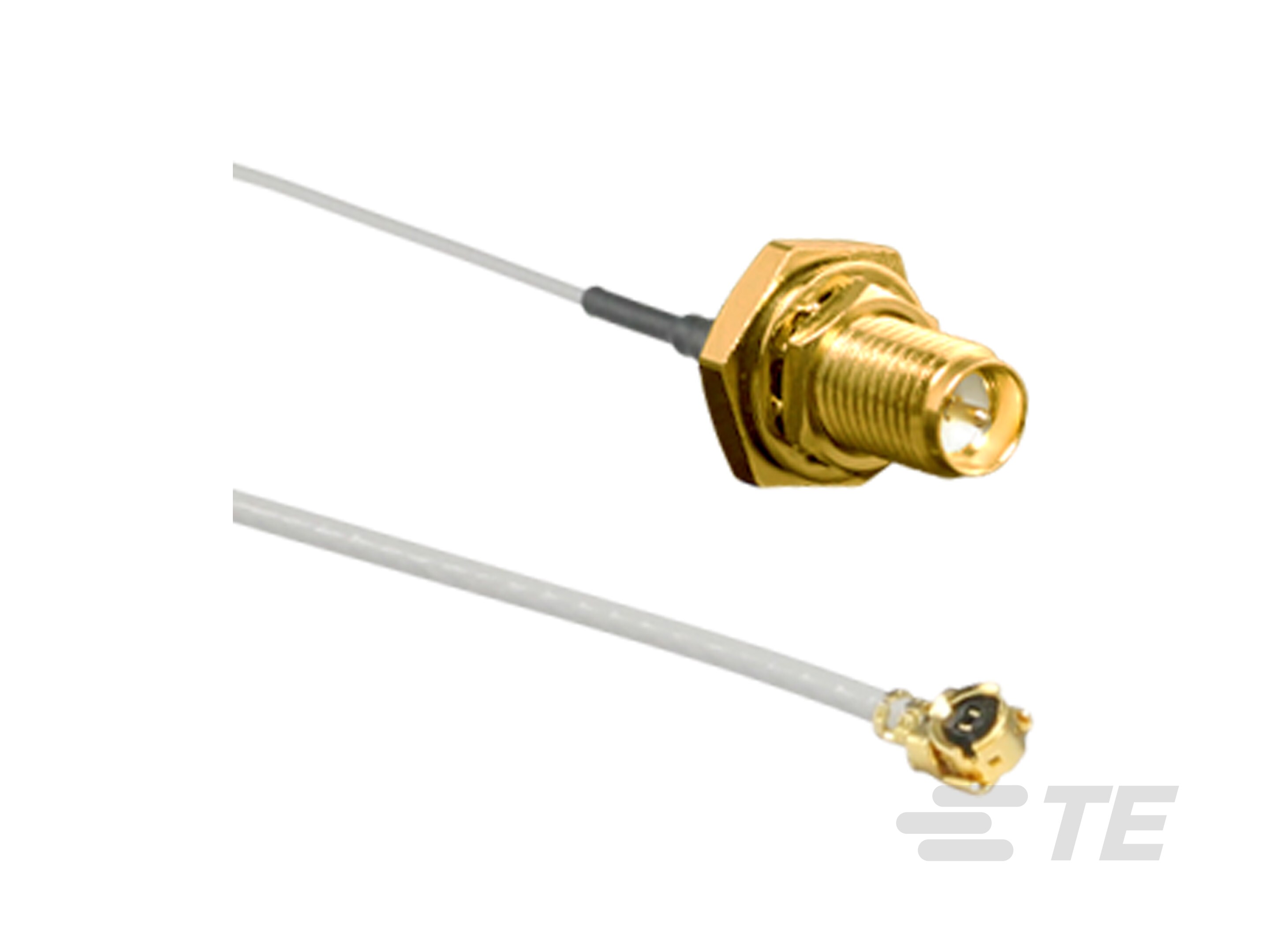

TE Connectivity AMP Connectors CSI-RGFI-300-UFFR	Bulkhead - Front Side Nut	Male	U.FL (UMCC) Plug Right Angle	50 Ohms	U.FL (UMCC) to RP-SMA	Panel Mount	RP-SMA Jack	Gray	Female	Free Hanging (In-Line)	3 GHz	Coaxial Cable	1.13 mm	11.811 in	300 mm
TE Connectivity AMP Connectors CSI-RGFI-300-UFFR-B	Bulkhead - Front Side Nut	Male	U.FL (UMCC) Plug Right Angle	50 Ohms	U.FL (UMCC) to RP-SMA	Panel Mount	RP-SMA Jack	Gray	Female	Free Hanging (In-Line)	3 GHz	Coaxial Cable	1.13 mm	11.811 in	300 mm
TE Connectivity AMP Connectors CSI-RGFI-100-UFFR	Bulkhead - Front Side Nut	Male	U.FL (UMCC) Plug Right Angle	50 Ohms	U.FL (UMCC) to RP-SMA	Panel Mount	RP-SMA Jack	Gray	Female	Free Hanging (In-Line)	3 GHz	Coaxial Cable	1.13 mm	3.937 in	100 mm
