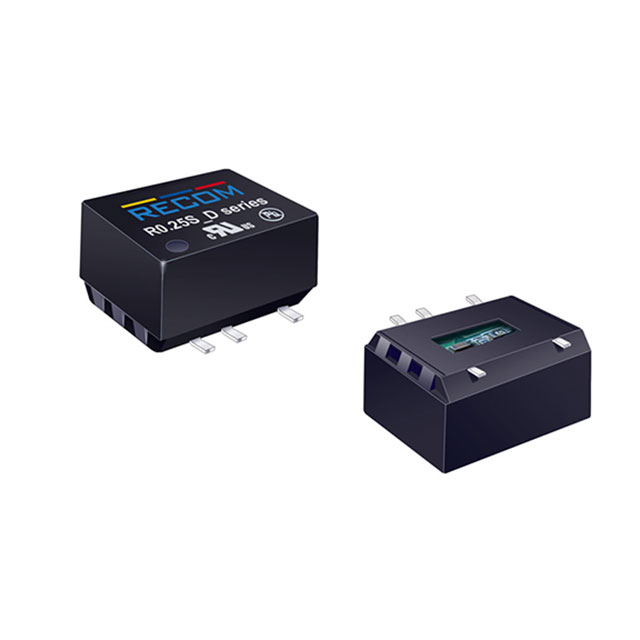

R0.25D Series

Catalog

0.25W DC/DC-CONVERTER ECONOLINE SMD 1KV UNREG ROHS COMPLIANT: YES

...

Part	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Features	Power (Watts)	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Efficiency [Max]	Efficiency [Min]	Mounting Type	Applications	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Voltage - Output 1	Voltage - Input (Min) [Min]	Voltage - Isolation	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
Recom Power R0.25D12-1515-R	Isolated Module	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	SCP	0.25 W	8.3 mA	8.3 mA	16.5 V	70 %	60 %	Surface Mount	ITE (Commercial)	12-SMD Module 10 Leads	-40 C	100 °C	2	15 V	13.5 V	1000 V	-15 V
Recom Power R0.25D-0509/P-R	Isolated Module	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	SCP	0.25 W			5.5 V	70 %	60 %	Surface Mount	ITE (Commercial)	10-SMD Module 6 Leads	-40 C	100 °C	2	9 V	4.5 V	1000 V	-9 V	14 mA	14 mA
Recom Power R0.25D12-1215/P-R	Isolated Module	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	SCP	0.25 W	8.3 mA	8.3 mA	13.2 V	70 %	60 %	Surface Mount	ITE (Commercial)	12-SMD Module 10 Leads	-40 C	100 °C	2	15 V	10.8 V	1000 V	-15 V
Recom Power R0.25D10-1512/P	Isolated Module	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	SCP	0.25 W			16.5 V	70 %	60 %	Surface Mount	ITE (Commercial)	10-SMD Module	-40 C	100 °C	2	12 V	13.5 V	1000 V	-12 V			10.4 mA
Recom Power R0.25D12-1215/P	Isolated Module	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	SCP	0.25 W	8.3 mA	8.3 mA	13.2 V	70 %	60 %	Surface Mount	ITE (Commercial)	12-SMD Module 10 Leads	-40 C	100 °C	2	15 V	10.8 V	1000 V	-15 V
Recom Power R0.25D-2424	Isolated Module	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	SCP	0.25 W	5.2 mA		26.4 V	70 %	60 %	Surface Mount	ITE (Commercial)	10-SMD Module 6 Leads	-40 C	100 °C	2	24 V	21.6 V	1000 V	-24 V
Recom Power R0.25D10-1512/P-R	Isolated Module	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	SCP	0.25 W			16.5 V	70 %	60 %	Surface Mount	ITE (Commercial)	10-SMD Module	-40 C	100 °C	2	12 V	13.5 V	1000 V	-12 V			10.4 mA
Recom Power R0.25D-1524/P-R	Isolated Module	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	SCP	0.25 W	5.2 mA		16.5 V	70 %	60 %	Surface Mount	ITE (Commercial)	10-SMD Module 6 Leads	-40 C	100 °C	2	24 V	13.5 V	1000 V	-24 V
Recom Power R0.25D12-1209/P	Isolated Module	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	SCP	0.25 W			13.2 V	70 %	60 %	Surface Mount	ITE (Commercial)	12-SMD Module 10 Leads	-40 C	100 °C	2	9 V	10.8 V	1000 V	-9 V	14 mA	14 mA
Recom Power R0.25D-3.312/H-R	Isolated Module	7 mm	0.42 "	10.7 mm	0.6 "	0.28 "	15.2 mm	SCP	0.25 W			3.6 V	70 %	60 %	Surface Mount	ITE (Commercial) Medical	10-SMD Module 6 Leads	-40 C	100 °C	2	12 V	3 V	3000 V	-12 V			10.4 mA
