PC15FT Series
Manufacturer: HELLERMANNTYTON
Beta
⌘K

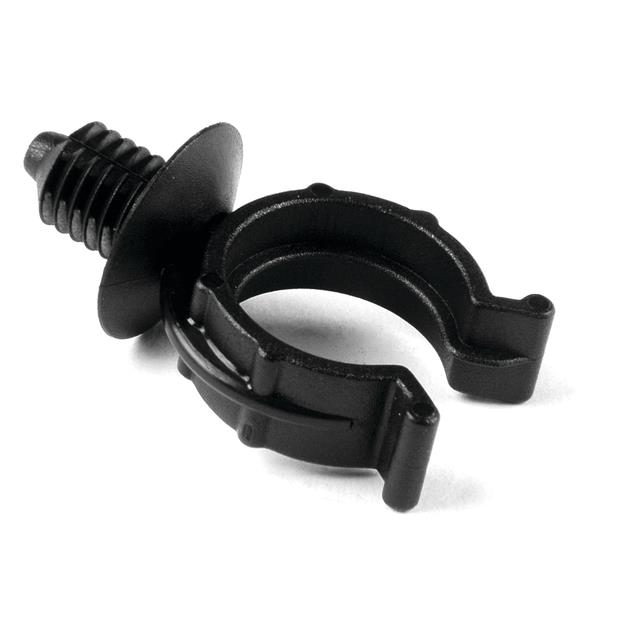

FIR TREE MOUNT TUBE CLIP, MOUNTING HOLE DIA .25", PANEL THICKNESS .12", PA66HIRHSUV, BLACK 1000/BOX
| Part | Panel Thickness [Max] | Panel Thickness [Min] | Panel Thickness [Max] | Panel Thickness [Min] | Mounting Type | Height | Height [z] | Width [y] | Width [y] | Material Flammability Rating | Features | Opening Size | Opening Size | Length | Length | Material | Type Attributes | Panel Hole Size [Min] | Panel Hole Size [Max] | Panel Hole Size [Min] | Panel Hole Size [Max] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HELLERMANNTYTON | 0.236 in | 0.039 in | 6 mm | 0.99 mm | Cupped Fir Tree | 27.1 mm | 1.067 in | 12 mm | 0.472 " | UL94 HB | Heat Stabilized Impact Resistant | 0.618 in | 15.7 mm | 21.59 mm | 0.85 in | Polyamide (PA66) Nylon 6/6 | Open | 6.4 mm | 6.8 mm | 0.252 " | 0.268 " | Black |
