HCT80 Series

Catalog

MOSFET N/P-CH 90V 2A/1.1A 6SMD

Part	Configuration	Vgs(th) (Max) @ Id	Rds On (Max) @ Id, Vgs [Max]	Drain to Source Voltage (Vdss)	Technology	Input Capacitance (Ciss) (Max) @ Vds [Max]	Mounting Type	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Power - Max [Max]	Current - Continuous Drain (Id) @ 25°C

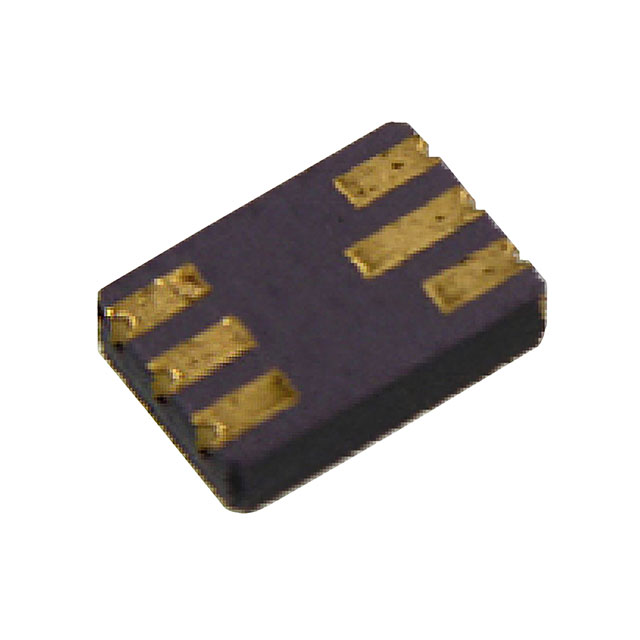

TT Electronics/BI HCT802	N and P-Channel	2.5 V	5 Ohm	90 V	MOSFET (Metal Oxide)	70 pF	Surface Mount	6-SMD No Lead	6-SMD	150 °C	-55 °C	500 mW	1.1 A 2 A
