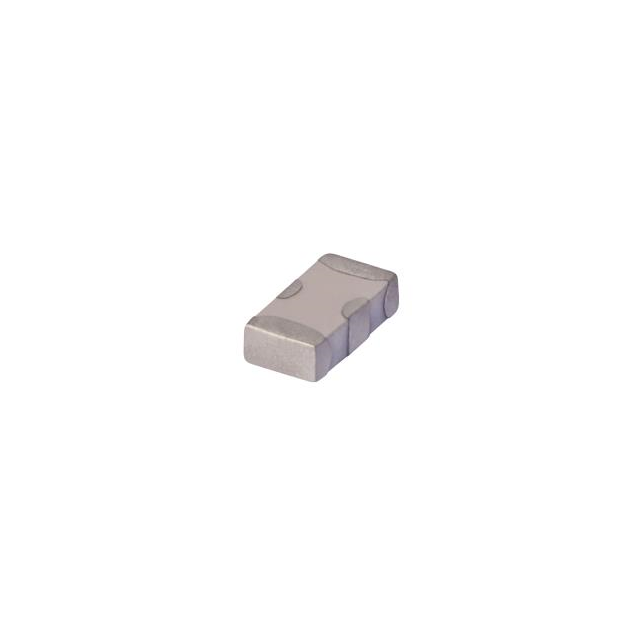

LFCN-120 Series
Manufacturer: Mini-Circuits
Beta
⌘K
LTCC LOW PASS FILTER, DC - 120 M
| Part | Package / Case | Package / Case | Package / Case | Filter Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Insertion Loss | Height (Max) [z] | Height (Max) [z] | Mounting Type | Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mini-Circuits | 1206 | 4 PC Pad | 3216 Metric | Low Pass | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1 dB | 0.037 in | 0.95 mm | Surface Mount | 120 MHz |
