0ADK Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
CARTRIDGE FUSES FUSE, CERAMIC TUBE 2.5A, 600VAC/500VDC
| Part | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Response Time | Melting I²t | Fuse Type | Breaking Capacity @ Rated Voltage | Current Rating (Amps) | Voltage Rating - AC | Mounting Type | Package / Case [x] | Package / Case [y] | Size / Dimension [custom] | Size / Dimension [custom] | Package / Case | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 20 mm | 0.205 in | 0.787 " | 5.2 mm | -55 C | 125 °C | 500 V | Slow Blow | 12.5 | Cartridge Ceramic | 200 A 300 A | 2.5 A | 600 V | Requires Holder | 5 mm | 20 mm | ||||

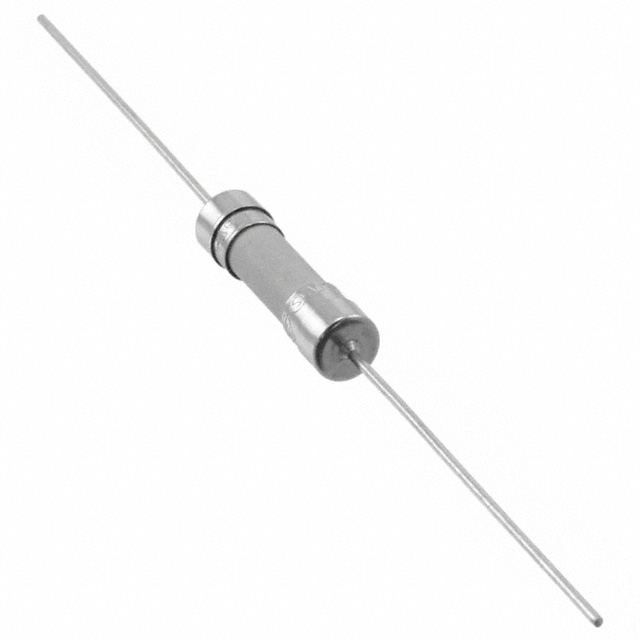

 Bel Fuse Inc. | 0.236 in | 6 mm | -55 C | 125 °C | 500 V | Slow Blow | 25 | Cartridge Ceramic | 200 A 300 A | 4 A | 600 V | Through Hole | 5 mm | 20 mm | 22.5 mm | 0.886 in | Axial | |||
 Bel Fuse Inc. | 0.236 in | 6 mm | -40 C | 125 °C | 500 V | Slow Blow | 576 | Cartridge Ceramic | 200 A 300 A | 12 Amps | 600 V | Through Hole | 5 mm | 20 mm | 22.5 mm | 0.886 in | Axial | cURus TUV | ||
Bel Fuse Inc. | 0.236 in | 6 mm | -40 C | 125 °C | 500 V | Slow Blow | 9.4 | Cartridge Ceramic | 200 A 300 A | 2 A | 600 V | Through Hole | 5 mm | 20 mm | 22.5 mm | 0.886 in | Axial | cURus TUV | ||
Bel Fuse Inc. | 0.236 in | 6 mm | -55 C | 125 °C | 500 V | Slow Blow | 400 I²t | Cartridge Ceramic | 200 A 300 A | 10 A | 600 V | Through Hole | 5 mm | 20 mm | 22.5 mm | 0.886 in | Axial | |||
Bel Fuse Inc. | 20 mm | 0.205 in | 0.787 " | 5.2 mm | -55 C | 125 °C | 500 V | Slow Blow | 25 | Cartridge Ceramic | 200 A 300 A | 4 A | 600 V | Requires Holder | 5 mm | 20 mm |
