45240 Series

Catalog

40P HDR ST VTH 30AU

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Insulation Height	Insulation Height	Shrouding	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Voltage Rating	Number of Rows [custom]	Insulation Material	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Material	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Features	Contact Type	Style	Number of Positions Loaded	Number of Positions	Termination	Contact Finish Thickness - Mating
3M Electronic Specialty 45240-600230	200 µin	5.08 µm	Through Hole	0.222 in	5.64 mm	Shrouded - 4 Wall	Tin	-65 ░C	125 °C	UL94 V-0	Header	0.05 in	1.27 mm	0.076 µm	3 µin	Square	125 VAC	2	Liquid Crystal Polymer (LCP)	1.27 mm	0.05 in	Push-Pull	Copper Alloy	Gold	2.4 mm	0.094 in	Keying Slot	Male Pin	Board to Cable/Wire	All	40	Solder
3M Electronic Specialty 45240-620200	100 µin	2.54 µm	Through Hole	0.222 in	5.64 mm	Shrouded - 4 Wall	Tin	-65 ░C	125 °C	UL94 V-0	Header	0.05 in	1.27 mm			Square	125 VAC	2	Liquid Crystal Polymer (LCP)	1.27 mm	0.05 in	Latch Lock/Eject Hooks	Copper Alloy	Gold	2.4 mm	0.094 in	Keying Slot	Male Pin	Board to Cable/Wire	All	40	Solder	Flash

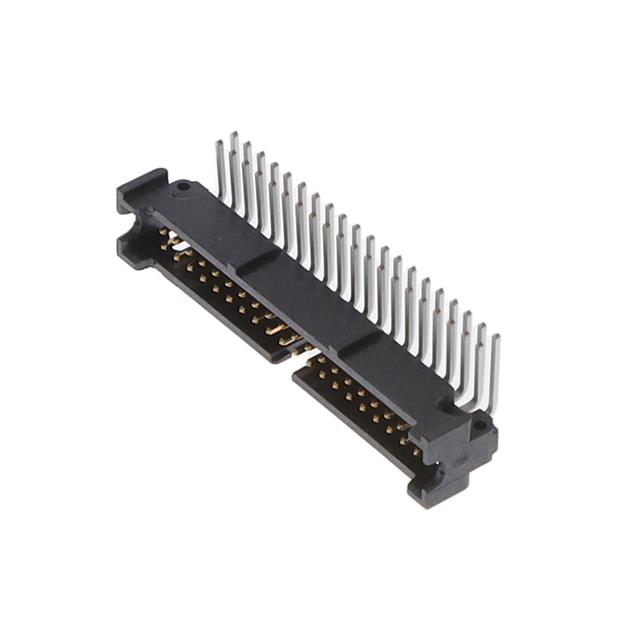

3M Electronic Specialty 45240-500230	200 µin	5.08 µm	Right Angle Through Hole	0.21 in	5.33 mm	Shrouded - 4 Wall	Tin	-65 ░C	125 °C	UL94 V-0	Header	0.05 in	1.27 mm	0.076 µm	3 µin	Square	125 VAC	2	Liquid Crystal Polymer (LCP)	1.27 mm	0.05 in	Push-Pull	Copper Alloy	Gold	2.4 mm	0.094 in	Keying Slot	Male Pin	Board to Cable/Wire	All	40	Solder
3M Electronic Specialty 45240-200200	100 µin	2.54 µm	Surface Mount	0.222 in	5.64 mm	Shrouded - 4 Wall	Tin	-65 ░C	125 °C	UL94 V-0	Header	0.05 in	1.27 mm			Square	125 VAC	2	Liquid Crystal Polymer (LCP)	1.27 mm	0.05 in	Push-Pull	Copper Alloy	Gold			Keying Slot Pick and Place	Male Pin	Board to Cable/Wire	All	40	Solder	Flash

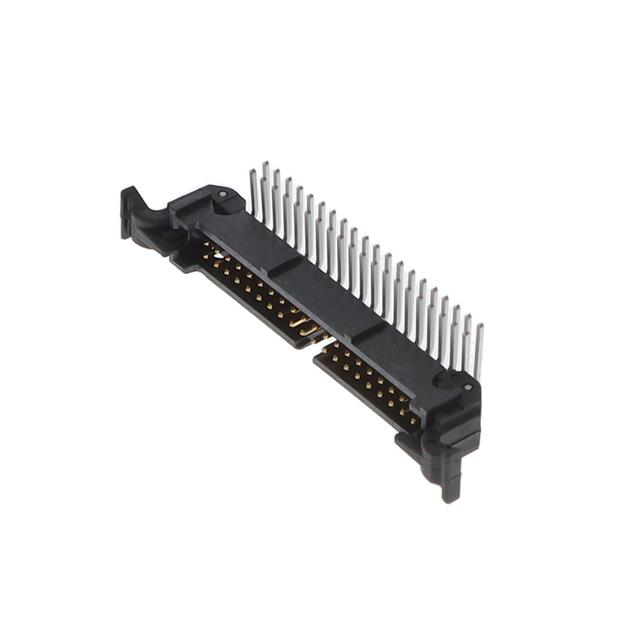

3M Electronic Specialty 45240-520200	100 µin	2.54 µm	Right Angle Through Hole	0.21 in	5.33 mm	Shrouded - 4 Wall	Tin	-65 ░C	125 °C	UL94 V-0	Header	0.05 in	1.27 mm			Square	125 VAC	2	Liquid Crystal Polymer (LCP)	1.27 mm	0.05 in	Latch Lock/Eject Hooks	Copper Alloy	Gold	2.4 mm	0.094 in	Keying Slot	Male Pin	Board to Cable/Wire	All	40	Solder	Flash
3M Electronic Specialty 45240-600200	100 µin	2.54 µm	Through Hole	0.222 in	5.64 mm	Shrouded - 4 Wall	Tin	-65 ░C	125 °C	UL94 V-0	Header	0.05 in	1.27 mm			Square	125 VAC	2	Liquid Crystal Polymer (LCP)	1.27 mm	0.05 in	Push-Pull	Copper Alloy	Gold	2.4 mm	0.094 in	Keying Slot	Male Pin	Board to Cable/Wire	All	40	Solder	Flash
3M Electronic Specialty 45240-200230	200 µin	5.08 µm	Surface Mount	0.222 in	5.64 mm	Shrouded - 4 Wall	Tin	-65 ░C	125 °C	UL94 V-0	Header	0.05 in	1.27 mm	0.076 µm	3 µin	Square	125 VAC	2	Liquid Crystal Polymer (LCP)	1.27 mm	0.05 in	Push-Pull	Copper Alloy	Gold			Keying Slot Pick and Place	Male Pin	Board to Cable/Wire	All	40	Solder
3M Electronic Specialty 45240-500200	100 µin	2.54 µm	Right Angle Through Hole	0.21 in	5.33 mm	Shrouded - 4 Wall	Tin	-65 ░C	125 °C	UL94 V-0	Header	0.05 in	1.27 mm			Square	125 VAC	2	Liquid Crystal Polymer (LCP)	1.27 mm	0.05 in	Push-Pull	Copper Alloy	Gold	2.4 mm	0.094 in	Keying Slot	Male Pin	Board to Cable/Wire	All	40	Solder	Flash
3M Electronic Specialty 45240-220200	100 µin	2.54 µm	Surface Mount	0.222 in	5.64 mm	Shrouded - 4 Wall	Tin	-65 ░C	125 °C	UL94 V-0	Header	0.05 in	1.27 mm			Square	125 VAC	2	Liquid Crystal Polymer (LCP)	1.27 mm	0.05 in	Latch Lock/Eject Hooks	Copper Alloy	Gold			Keying Slot Pick and Place	Male Pin	Board to Cable/Wire	All	40	Solder	Flash
