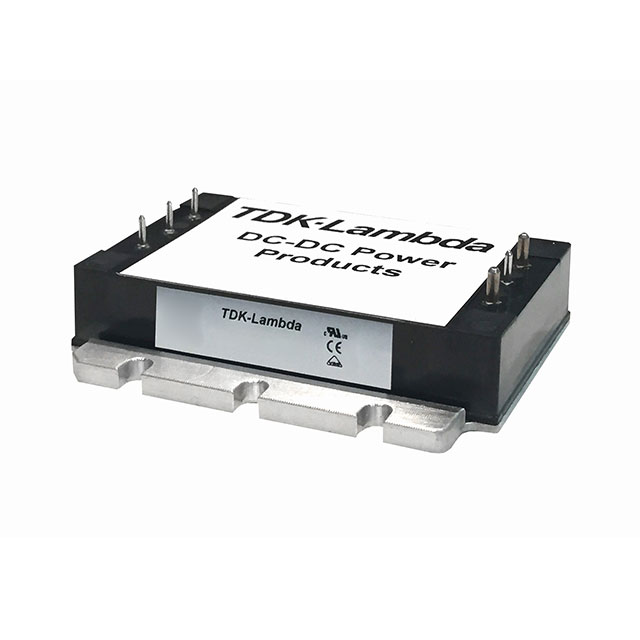

HQA2W120 Series
Manufacturer: TDK Corporation
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 18-40VDC
| Part | Voltage - Output 1 | Applications | Power (Watts) | Approval Agency | Voltage - Isolation | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Control Features | Mounting Type | Current - Output (Max) [Max] | Type | Number of Outputs | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Package / Case | Voltage - Input (Min) [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 28 V | ITE (Commercial) | 120 W | CE | 2250 VDC | -55 C | 115 °C | 89 % | Active Low Enable | Through Hole | 4.2 A | Isolated Module | 1 | 0.5 in | 2.39 " | 60.6 mm | 55.9 mm | 12.7 mm | 2.2 " | Quarter Brick | 9 V | |
TDK Corporation | 28 V | ITE (Commercial) | 120 W | CE | 2250 VDC | -40 C | 115 °C | 89 % | Active Low Enable | Through Hole | 4.2 A | Isolated Module | 1 | 0.5 in | 2.39 " | 60.6 mm | 55.9 mm | 12.7 mm | 2.2 " | Quarter Brick | 9 V | |
TDK Corporation | 12 V | ITE (Commercial) | 120 W | CE | 2250 VDC | -40 C | 115 °C | 90 % | Active Low Enable | Through Hole | 10 A | Isolated Module | 1 | 0.5 in | 2.39 " | 60.6 mm | 55.9 mm | 12.7 mm | 2.2 " | Quarter Brick | 9 V | |
 TDK Corporation | 28 V | ITE (Commercial) | 120 W | CE | 2250 VDC | -40 C | 115 °C | 89 % | Active Low Enable | Through Hole | 4.2 A | Isolated Module | 1 | 0.5 in | 2.39 " | 60.6 mm | 39.5 mm | 12.7 mm | 1.54 in | Quarter Brick | 9 V | |
TDK Corporation | 15 V | ITE (Commercial) | 120 W | CE | 2250 VDC | -40 C | 115 °C | 89 % | Active Low Enable | Through Hole | 8 A | Isolated Module | 1 | 0.5 in | 2.39 " | 60.6 mm | 55.9 mm | 12.7 mm | 2.2 " | Quarter Brick | 9 V | OCP OVP Remote On/Off |
