PNE20060EPE Series

200 V, 6 A hyperfast recovery rectifier

Catalog

200 V, 6 A hyperfast recovery rectifier

Part	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Technology	Supplier Device Package	Reverse Recovery Time (trr)	Speed	Capacitance @ Vr, F	Mounting Type	Package / Case	Operating Temperature - Junction	Voltage - DC Reverse (Vr) (Max) [Max]
Nexperia USA Inc. PNE20060EPEZ	6 A	940 mV	1 µA	Standard	CFP15B	30 ns	200 mA 500 ns	65 pF	Surface Mount	TO-277 3-PowerDFN	175 °C	200 V

Catalog

200 V, 6 A hyperfast recovery rectifier

Description

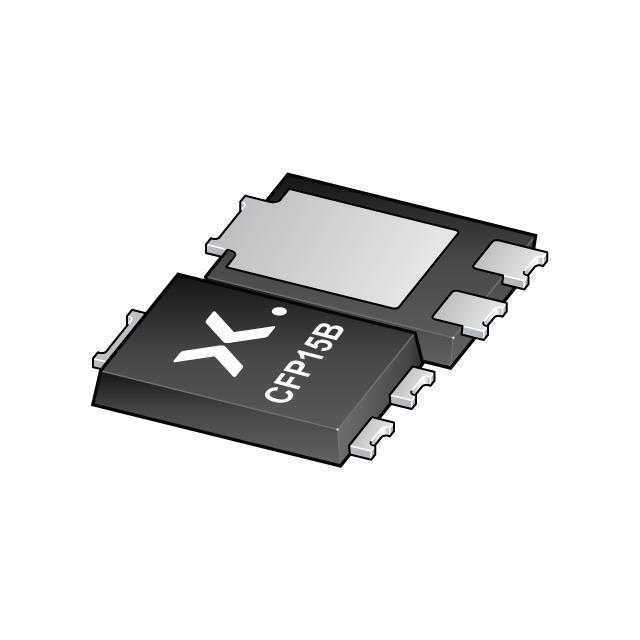

High power density, hyperfast switching time recovery rectifier with high-efficiency planar technology, encapsulated in a CFP15B (SOT1289B) power and flat lead Surface-Mounted Device (SMD) plastic package.
