CONSMB007 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

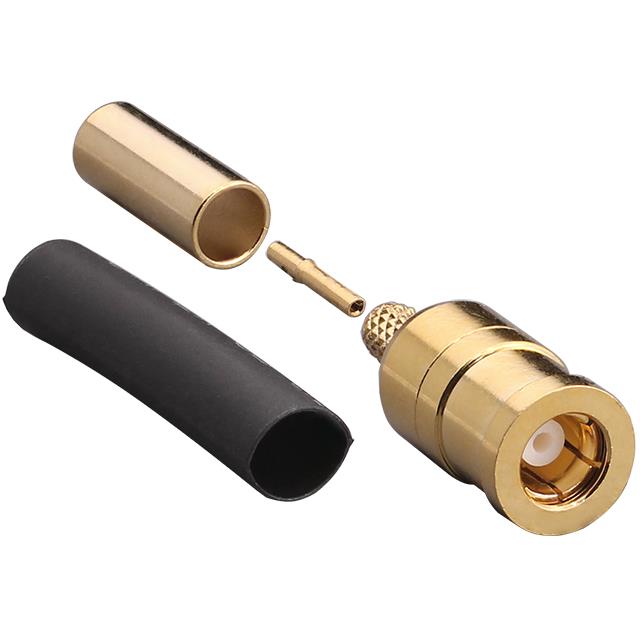

CONN SMB PLUG STR 50 OHM SOLDER
| Part | Dielectric Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Body Finish | Body Material | Center Contact Plating | Cable Group | Shield Termination | Contact Termination | Fastening Type | Connector Style | Frequency - Max [Max] | Number of Ports | Mounting Type | Housing Color | Connector Type | Impedance | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | 750 VDC | Gold | Brass | Gold | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | Crimp | Crimp | Snap-On | SMB | 12 GHz | 1 | Free Hanging (In-Line) | Gold | Female Socket Plug | 50 Ohms | Beryllium Copper |
